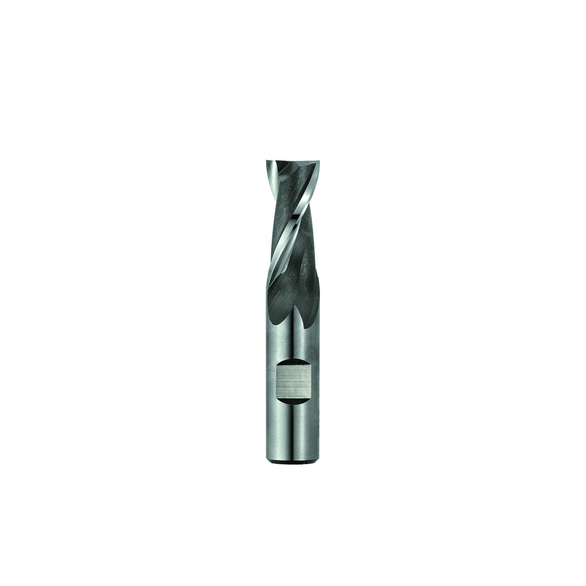

Niagara Cutter 17016368 SP205 Center Cutting Short Length Single End Square End End Mill, 1/4 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 2-5/16 in OAL, TiCN Coated
NIACUT 17016368
$27.90
/ EA
Out of Stock
- Mill Diameter: 1/4 in
- Number of Flutes: 2
- Length of Cut: 1/2 in
- Material: M42 8% Cobalt
- Finish/Coating: TiCN Coated
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 2-5/16 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Arbor/Shank Size: 3/8 in
- Cutter Diameter: 1/4 in
- Cutter Diameter - Decimal: 0.25 in
- Cutter Diameter - Metric: 6.35 mm
- Finish: TiCN Coated
- Length of Cut - Fractional: 1/2 in
- Overall Length - Fractional: 2-5/16 in
- Series: SP205
- Type: Center Cutting
- Length Type: Short Length
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/4 in
- Shank Type: Weldon Flat
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN and is commonly used on stainless steels, cast iron and aluminum alloys
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Square nose end mills create sharp, unrounded cuts
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- F - Step tool shape
For pocketing and slotting in all materials including high temperature alloys
Niagara Cutter End Mill | Center Cutting Short Length Single End Square End | Series: SP205 | 1/4 in Cutter Dia | 2-5/16 in Overall Length | 3/8 in | 1/2 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: SP205-0.250-F2-S.3-Z2 | ISO Code: SP205.250F2S.3Z2 | M42 8% Cobalt | TiCN Coated
