LMT Onsrud LP

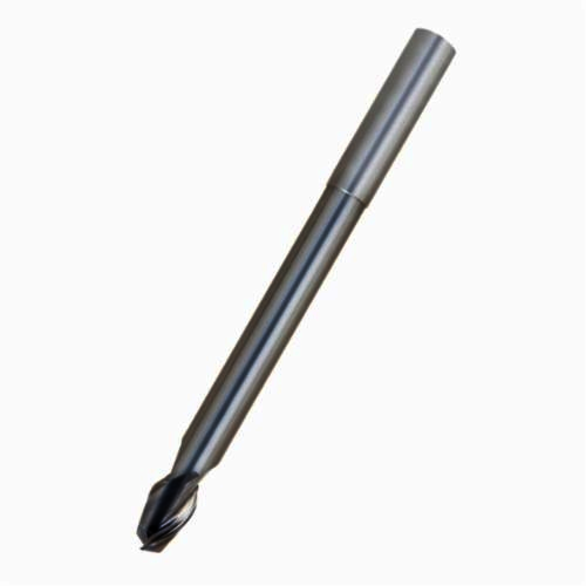

ONSCUT MXQ2650125 in Corner Rad, in Mill Dia, in LOC, in OAL, Flutes, , , Corner Radius & Corner Chamfer End Mill
ONSCUT MXQ2650125
$159.84
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Corner Radius: 0.19 in
- Number of Flutes: 4
- Material: Carbide
- Length of Cut: 1-1/4 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 3 in
- Cutting Direction: Right Hand
- Helix Angle: 36 deg
- Cutter Diameter: 1/2 in
- Cutter Diameter - Decimal: 0.5 in
- Cutter Diameter - Metric: 12.7 mm
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- End Type: Corner Radius
- Finish: ESG
- Finish/Coating: ESG
- Part Number: MXQ2650125
- Series: MaxQ-4
- Series/List: MaxQ-5
- Shank Type: Cylindrical
- Type: Dual Helix;High Performance;Variable Index
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/2 in
- The MaxQ end mills from LMT Onsrud will allow you to maximize your classic milling techniques in demanding applications across a broad range of materials. Providing the versatility for slot milling to high speed machining, MaxQ can achieve unmatched material removal rates
- Machines high strength alloys as easily as it machines steel
- Broad technique range from slotting to profiling
- Optimized 4 and 5-flute geometry for maximum feed rates
- Full radial engagement up to 1 times diameter deep
- ENDURASpeed coating for maximum heat resistance
LMT Onsrud Cutter LP MXQ2650125 | 4 | Carbide | 0.1900 in | ESG Coated | Corner Radius & Corner Chamfer End Mill
