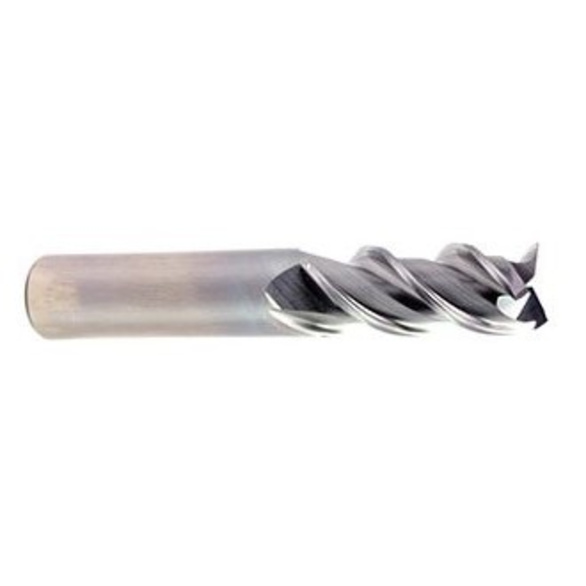

OSG 20415300 5/8 in Milling Dia, 3/4 in LOC, 3-1/2 in OAL, 3 Flutes, Solid Carbide, Bright, Square End Mills
- Mill Diameter: 5/8 in
- Number of Flutes: 3
- Length of Cut: 3/4 in
- Material: Solid Carbide
- Finish/Coating: Bright
- Shank Diameter: 5/8 in
- Shank Diameter - Decimal: 0.625 in
- Shank Diameter - Fractional: 5/8 in
- Shank Diameter - Metric: 15.87 mm
- Overall Length: 3-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Cutter Diameter: 5/8 in
- Diameter: 5/8 in
- Diameter - Metric: 15.87 mm
- Flute Type: Spiral
- Length of Cut - Fractional: 3/4 in
- Length Type: Stub Length
- Overall Length - Fractional: 3-1/2 in
- Series: 2041
- Shank Type: Shrink Fit
- Cutter Diameter - Fractional: 5/8 in
- Diameter - Fractional: 5/8 in
- Diameter - Decimal: 0.625 in
- Finish: Bright
The EXOCARB® Aero Blizzard® series is part of the OSG premium line of carbide high performance end mills specifically designed for either Aluminum or Copper alloys. Special end cut gashing and offset teeth permit large depths of cut and maximum feed per tooth. Made with polished flutes to enhance tool life and reduce BUE, this end mill yields 45-50% higher metal removal rates in roughing applications, and superior finishing capability.
- Refined geometry
- Larger depth of cut and maximum feed per tooth
- Ultra smooth Flutes
- Enhances tool life by reducing BUE
- DLC available on request
- Ideal for rough and finish contouring
Application:Aluminum and Copper alloysAny application where productivity and the lowest cost-per-unit is the goalWhen spindle speed is limited (< 10,000 rpm)Aerospace, Job ShopsRoughing, Finishing and Contouring
OSG 20415300 Mill Diameter 5/8 in | Number of Flutes 3 | Length of Cut 3/4 in | Carbide | Bright | Square End Mill
