OSG

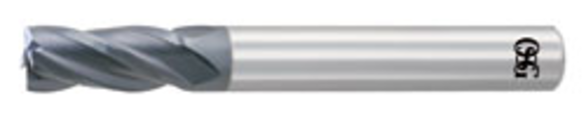

OSG 36041411 1/2 in Milling Dia, 1 in LOC, 3 in OAL, 4 Flutes, Carbide, WXL Coated, Square End Mills

OSG 36041411
$159.58 / EA
Out of Stock
  • Mill Diameter: 1/2 in
  • Number of Flutes: 4
  • Length of Cut: 1 in
  • Material: Carbide
  • Finish/Coating: WXL® Coated
  • Shank Diameter: 1/2 in
  • Shank Diameter - Decimal: 0.5 in
  • Shank Diameter - Fractional: 1/2 in
  • Shank Diameter - Metric: 12.7 mm
  • Overall Length: 3 in
  • Helix Angle: 30 deg
  • Cutter Diameter: 1/2 in
  • Diameter: 1/2 in
  • Finish: WXL® Coated
  • Overall Length - Decimal: 3 in
  • Series: 3604
  • Shank Type: Round
  • Cutter Diameter - Fractional: 1/2 in
  • Diameter - Fractional: 1/2 in
  • Diameter - Metric: 12.7 mm
  • Diameter - Decimal: 0.5 in
  • High precision geometry - all corner radius and ball mills have +/-5um radius tolerance
  • High strength core diameter
  • WXL coating - +1100 celsius oxidation temperature and +3100Hv in hardness
  • The hardest ost wear resistant carbide possible for incredible wear-resistance
  • High accuracy all but eliminates need for benching and rework for mold makers
  • Tools utilize thicker core diameters for the ultimate in strength and rigidity
  • Higher coating oxidation temp and hardness dramatically improve wear resistance

For pre-hardened and hardened steels

EXOCARB WXL High Performance End Mill | Center Cutting Regular Length Square End | Series: 3604 | 1/2 in Cutter Dia | 3 in Overall Length | 1 in Maximum Depth of Cut | 4 Flutes | 1/2 in Shank Dia | 30 deg Helix Angle | Round Shank | Carbide | WXL Coated
