OSG

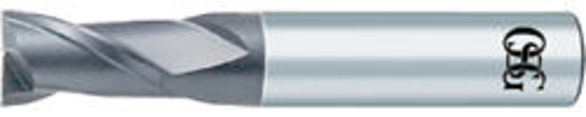

OSG 36200010 9/32 in Milling Dia, 9/16 in LOC, 2-1/2 in OAL, 2 Flutes, Micrograin Carbide, WXL® Coated, Square End Mills

OSG 36200010
$72.75 / EA
Out of Stock
Product Image
  • Mill Diameter: 9/32 in
  • Number of Flutes: 2
  • Length of Cut: 9/16 in
  • Material: Micrograin Carbide
  • Finish/Coating: WXL® Coated
  • Shank Diameter: 5/16 in
  • Shank Diameter - Decimal: 0.3125 in
  • Shank Diameter - Fractional: 5/16 in
  • Shank Diameter - Metric: 7.937 mm
  • Overall Length: 2-1/2 in
  • Cutting Direction: Right Hand
  • Helix Angle: 30 deg
  • Cutter Diameter: 9/32 in
  • Cutter Diameter - Fractional: 9/32 in
  • Diameter: 9/32 in
  • Diameter - Decimal: 0.28125 in
  • Finish: WXL® Coated
  • Length of Cut - Fractional: 9/16 in
  • Length Type: Stub Length
  • Overall Length - Fractional: 2-1/2 in
  • Series: 3620
  • Shank Type: Shrink Fit
  • Type: Center Cutting
  • Diameter - Fractional: 9/32 in
  • Diameter - Metric: 7.143 mm

EXOCARB® WXL end mills are the new industry standard for hard milling. Everything about WXL is designed for rigidity and performance in wide variety of materials and a wide variety of milling applications. Substrates, geometry, and proprietary WXL coating are all specifically tailored for nonferrous materials, mild steels, and steels up to 50HRC

  • Ultra-fine micrograin carbide
  • The hardest ost wear resistant carbide possible for incredible wear resistance
  • High Precision geometry
  • High accuracy all but eliminates need for benching and rework for mold makers
  • High strength core diameter
  • Tools utilize thicker core diameters for the ultimate in strength and rigidity
  • WXL coating - +1100 Celsius Oxidation Temp. & +3100Hv in hardness
  • Higher coating oxidation temp & hardness dramatically improve wear resistance

Application:Ideally suited for Hardened steel < 50 HRC.Also works in: Cast Iron, Carbon Steel, Alloy Steel, Alloy Steel, Die Steel, Copper Alloys and Aluminum Alloys.Use in combination with High Speed Machining Techniques to optimize performance.

OSG 36200010 Mill Diameter 9/32 in | Number of Flutes 2 | Length of Cut 9/16 in | Carbide | WXL | Square End Mill
