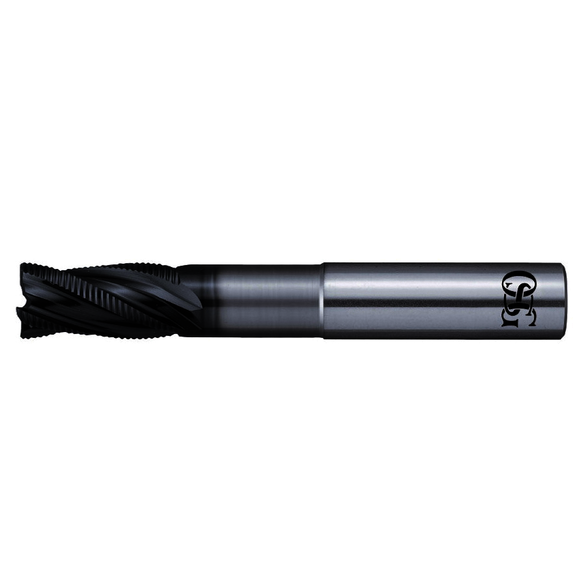

OSG 38251311 Fine Pitch, 1-3/8 in LOC, 4, Roughing End Mill
OSG 38251311
$133.05
/ EA
Out of Stock
- Mill Diameter: 5/16 in
- Mill Diameter - Decimal: 0.3125 in
- Mill Diameter - Fractional: 5/16 in
- Mill Diameter - Metric: 7.9375 mm
- Pitch: Fine
- Length of Cut: 5/8 in
- Shank Diameter: 5/16 in
- Shank Diameter - Decimal: 0.3125 in
- Shank Diameter - Fractional: 5/16 in
- Shank Diameter - Metric: 7.9375 mm
- End Type: Corner Chamfer
- Material: Carbide
- Finish/Coating: WXL®
- Overall Length: 3 in
- Centercutting: Center Cutting
- Helix Angle: Variable
- Cutter Diameter: 5/16 in
- Cutter Diameter - Fractional: 5/16 in
- Cutting Direction: Right Hand
- Finish: WXL® Coated
- Length of Cut - Decimal: 0.625 in
- Length of Cut - Fractional: 5/8 in
- Length of Cut - Metric: 15.875 mm
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Series: 3825
- Shank Type: Shrink Fit
- Flute Type: Spiral
- Number of Flutes: 4
The EXOCARB® AERO UVX-SRL end mills unequal Index and Variable Helix combine to provide a significant reduction in vibration while machining. Its unequally configured serrations of the cutting edge significantly reduces cutting resistance.
- Variable lead of the peripheral cutting edge and unequal spacing of end teeth
- Provides efficient milling and suppresses vibration
- Unequally Configured serrations
- Significanly reduces cutting resistance
- WXL Multi-layered TiAlN Coating
- Multiple layers provide superior resistance to thermal cracking from heat, versus other mono-layered coatings
- Ultra-fine Micrograin Carbide
- Smaller grain size yield more wear resistance and better coating adhesion properties for extended tool life
Application:Carbon Steel, Cast IronAlloy Steel, Tool Steel, Stainless Steel, Aluminum AlloysTi-Alloys, Hardend Steels <35 HRC
OSG 38251311 Fine Pitch | 1-3/8 in LOC | 4 | Carbide | Roughing End Mill
