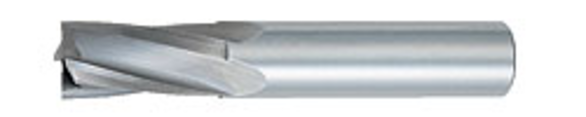

OSG 409-6875 11/16 in Milling Dia, 1-3/8 in LOC, 4 in OAL, 4 Flutes, Micrograin Carbide, Bright, Square End Mills
OSG 409-6875
$144.97
/ EA
Out of Stock
- Mill Diameter: 11/16 in
- Number of Flutes: 4
- Length of Cut: 1-3/8 in
- Material: Micrograin Carbide
- Finish/Coating: Bright
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: 15 deg
- Cutter Diameter: 11/16 in
- Cutter Diameter - Fractional: 11/16 in
- Diameter: 11/16 in
- Diameter - Decimal: 0.6875 in
- Diameter - Fractional: 11/16 in
- Diameter - Metric: 17.46 mm
- Length of Cut - Fractional: 1-3/8 in
- Overall Length - Decimal: 4 in
- Series: 409
- Shank Type: Straight
- Length Type: Regular Length
- Flute Type: Spiral
- Finish: Bright
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Application: Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.
OSG 409-6875 Mill Diameter 11/16 in | Number of Flutes 4 | Length of Cut 1-3/8 in | Carbide | Uncoated | Square End Mill
