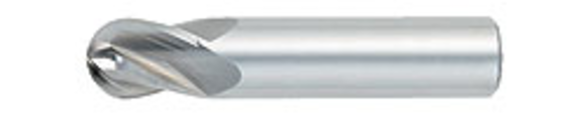

OSG 414-0938-BN 3/32 in Mill Dia, 3/16 in LOC, 1-1/2 in OAL, 4 Flutes, Carbide, Bright, Ball End Mill
OSG 414-0938-BN
$12.17
/ EA
Out of Stock
- Mill Diameter: 0.0938 in
- Mill Diameter - Decimal: 0.0938 in
- Mill Diameter - Fractional: 3/32 in
- Number of Flutes: 4
- Length of Cut: 0.1875 in
- Material: Carbide
- Overall Length: 1.5 in
- Shank Diameter: 0.125 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Finish/Coating: Uncoated
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 3/32 in
- Cutter Diameter - Fractional: 3/32 in
- Cutting Direction: Right Hand
- Diameter: 3/32 in
- Diameter - Decimal: 0.09375 in
- Diameter - Fractional: 3/32 in
- End Type: Ball Nose
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.1875 in
- Length of Cut - Fractional: 3/16 in
- Overall Length - Decimal: 1.5 in
- Overall Length - Fractional: 1-1/2 in
- Series: 414BN
- Shank Type: Straight
- Length Type: Stub Length
- Flute Type: Spiral
- Diameter - Metric: 2.381 mm
- Finish: Bright
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
- Uncoated tools do not feature supportive treatments on the cutting edge
Application: Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.They are are used at reduced speeds for general applications on nonferrous metals.
OSG 414-0938-BN Mill Diameter 3/32 in | Number of Flutes 4 | Length of Cut 3/16 in | Solid Carbide | 1-1/2 in | Ball End Mill
