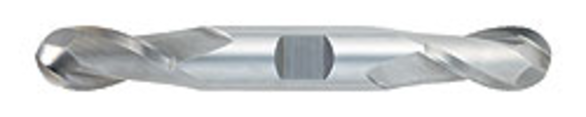

OSG 442-3438-BN 11/32 in Mill Dia, 3/4 in LOC, 3-1/2 in OAL, 2 Flutes, Carbide, Bright, Ball End Mill
OSG 442-3438-BN
$64.60
/ EA
Out of Stock
- Mill Diameter: 0.3438 in
- Mill Diameter - Decimal: 0.3438 in
- Mill Diameter - Fractional: 11/32 in
- Number of Flutes: 2
- Length of Cut: 0.75 in
- Material: Carbide
- Overall Length: 3.5 in
- Shank Diameter: 0.375 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Finish/Coating: Uncoated
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 11/32 in
- Cutter Diameter - Fractional: 11/32 in
- Cutting Direction: Right Hand
- Diameter: 11/32 in
- End Type: Ball Nose
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.75 in
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Overall Length - Decimal: 3.5 in
- Overall Length - Fractional: 3-1/2 in
- Series: 442BN
- Shank Type: Weldon Flat
- Flute Type: Spiral
- Diameter - Fractional: 11/32 in
- Diameter - Metric: 8.731 mm
- Diameter - Decimal: 0.34375 in
- Finish: Bright
The Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To Osg Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing And Precision.
Application:Cast Iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 Hrc.
Osg 442-3438-Bn Mill Diameter 11/32 In | Number Of Flutes 2 | Length Of Cut 3/4 In | Carbide | 3-1/2 In | Ball End Mill
