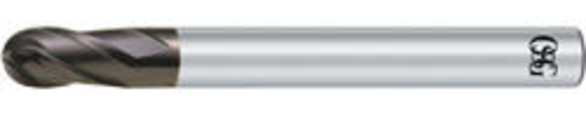

OSG 45300004 12 mm Dia, 22 mm LOC, 110 mm OAL, 4 Flutes, Micrograin Carbide, WXS® Coated, Ball End Mill
OSG 45300004
$268.20
/ EA
Out of Stock
- Mill Diameter: 12 mm
- Mill Diameter - Metric: 12 mm
- Number of Flutes: 2
- Length of Cut: 22 mm
- Material: Carbide
- Overall Length: 110 mm
- Shank Diameter: 12 mm
- Shank Diameter - Decimal: 0.4724 in
- Shank Diameter - Metric: 12 mm
- Finish/Coating: WXS
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 12 mm
- Cutter Diameter - Metric: 12 mm
- Cutting Direction: Right Hand
- Diameter: 0.47244 in
- Diameter - Decimal: 0.47244 in
- Finish: WXS® Coated
- Flute Direction: Right Hand
- Flute Type: Spiral
- Length of Cut - Metric: 22 mm
- Overall Length - Metric: 110 mm
- Series: 4530
- Shank Type: Shrink Fit
- End Type: Ball Nose
- Type: Center Cutting
- Diameter - Metric: 12 mm
Exocarb®-Wxs End Mills Are The New Industry Standard For Hard Milling. Everything About Wxs Is Designed For Rigidity And Performance In Hardened Steel 50 Hrc And Greater. Substrates, Geometry, And Proprietary Wxs Coating Are All Specifically Tailored For Hardened Steels Like D2, A2, S7, H13 And Cpm.
- Ultra-Fine Micrograin Carbide The Hardest Most Wear Resistant Carbide Possible For Incredible Wear Resistance
- High Precision Geometry - All Corner Radius & Ball Mills Have +/-5Um Radius Tolerance High Accuracy All But Eliminates Need For Benching And Rework For Mold Makers
- High Strength Core Diameter Tools Utilize Thicker Core Diameters For The Ultimate In Strength And Rigidity
- Wxs Coating - +1300 Celsius Oxidation Temp. & +3500Hv In Hardness Higher Coating Oxidation Temp & Hardness Dramatically Improve Wear Resistance.
Application:Ideally Suited For Hardened Steel > 50 Hrc.Also Works In: Cast Iron, Carbon Steel, Alloy Steel, Die Steel, Hardened Steel 35-50 Hrc.Use In Combination With High Speed Machining Techniques To Optimize Performance.
Osg 45300004 Mill Diameter 0.4724 In | Number Of Flutes 4 | Length Of Cut 22 Mm | Carbide | 110 Mm | Ball End Mill
