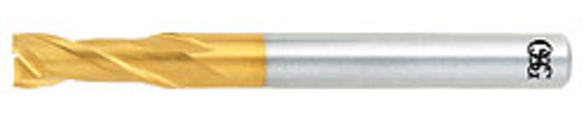

OSG 6737605 1/8 in Milling Dia, 3/8 in LOC, 1-7/8 in OAL, 2 Flutes, VC10 Powdered Metal HSS, TiN Coated, Square End Mills
OSG 6737605
$23.97
/ EA
Out of Stock
- Mill Diameter: 1/8 in
- Number of Flutes: 2
- Length of Cut: 3/8 in
- Material: VC10 Powdered Metal HSS
- Finish/Coating: TiN Coated
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.762 mm
- Overall Length: 1-7/8 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 1/8 in
- Diameter: 1/8 in
- Finish: TiN Coated
- Length of Cut - Fractional: 3/8 in
- Overall Length - Fractional: 1-7/8 in
- Series: 673
- Shank Type: Straight
- Type: Miniature
- Length Type: Regular Length
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/8 in
- Diameter - Fractional: 1/8 in
- Diameter - Decimal: 0.125 in
- Diameter - Metric: 3.175 mm
EXOMILL VC-10® Premium Powdered Metal End Mills for Difficult to Machine Materials
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
OSG 6737605 Mill Diameter 1/8 in | Number of Flutes 2 | Length of Cut 3/8 in | VC-10 | TiN | Square End Mill
