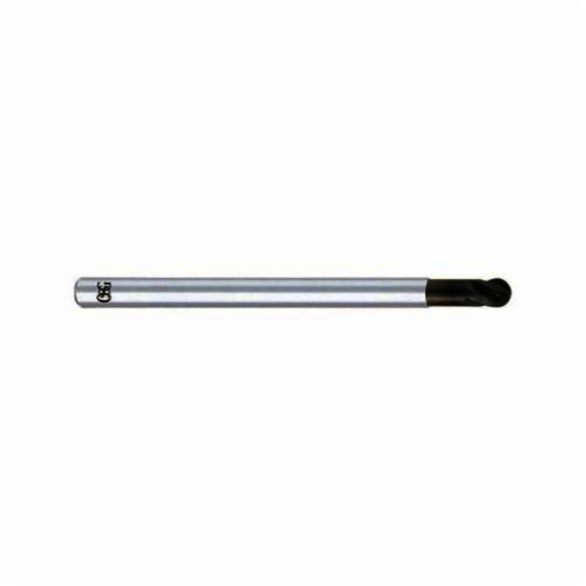

OSG 70320216 0.093 in Mill Dia, 3/32 in LOC, 3 in OAL, 4 Flutes, Carbide, Diamond Coated, Ball End Mill
OSG 70320216
$152.96
/ EA
Out of Stock
- Mill Diameter: 0.0938 in
- Mill Diameter - Decimal: 0.0938 in
- Mill Diameter - Fractional: 3/32 in
- Number of Flutes: 4
- Length of Cut: 0.0938 in
- Material: Carbide
- Overall Length: 3 in
- Shank Diameter: 0.0938 in
- Shank Diameter - Decimal: 0.0938 in
- Shank Diameter - Fractional: 3/32 in
- Shank Diameter - Metric: 2.3825 mm
- Finish/Coating: Diamond
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 0.093 in
- Cutting Direction: Right Hand
- Diameter: 3/32 in
- Diameter - Decimal: 0.09375 in
- End Type: Ball Nose
- Finish: Diamond Coated
- Length of Cut - Decimal: 0.0938 in
- Length of Cut - Fractional: 3/32 in
- Length Type: Long Length
- Neck Diameter: 0.0898 in
- Neck Diameter - Decimal: 0.0898 in
- Neck Diameter - Metric: 2.28 mm
- Neck Length: 0.469 in
- Overall Length - Decimal: 3 in
- Series: 703
- Shank Type: Round
- Flute Type: Spiral
- Diameter - Fractional: 3/32 in
- Diameter - Metric: 2.381 mm
- Flute Direction: Right Hand
Aluminum, Graphite, Copper and Carbon Fiber
EXOCARB High Performance End Mill | Ball End Center Cutting Single End | Series: 703 | 0.093 in Cutter Dia | 3 in Overall Length | 3/32 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/32 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Round Shank | Carbide | Diamond Coated
