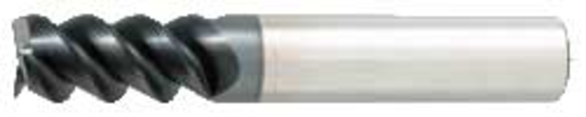

OSG HP460-3937 10 mm Milling Dia, 25 mm LOC, 70 mm OAL, 3 Flutes, Sub-Micrograin Carbide, TiAlN Coated, Square End Mills
OSG HP460-3937
$68.86
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 10 mm
- Mill Diameter - Decimal: 0.394 in
- Number of Flutes: 3
- Length of Cut: 25 mm
- Material: Sub-Micrograin Carbide
- Finish/Coating: TiAlN
- Shank Diameter: 10 mm
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Single or Double End: Single End
- Overall Length: 70 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 60 deg
- Center Cutting: Yes
- Chipbreaker: No
- Cutter Diameter: 10 mm
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Metric: 10 mm
- Extended Reach: No
- Finish: TiAlN Coated
- Length of Cut - Decimal: 0.984 in
- Length of Cut - Metric: 25 mm
- Overall Length - Metric: 70 mm
- Series: HP460
- Series/List: HP460
- Shank Type: Shrink Fit
- Variable Helix: No
- Length Type: Regular Length
- Flute Type: Spiral
- Cutter Diameter - Metric: 10 mm
- Variable Index: No
The HY-PRO®-CARB is an entire line up of performance end mills designed for extend tool life.
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Application:Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.
OSG HP460-3937 Mill Diameter 0.3937 in | Number of Flutes 3 | Length of Cut 0.9843 in | Carbide | TiAlN | Square End Mill
