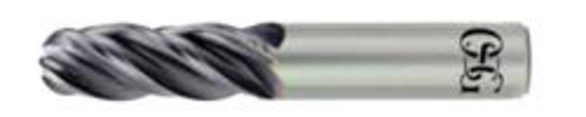

OSG VG441-7500-BN 3/4 in Mill Dia, 1-1/2 in LOC, 4 in OAL, 4 Flutes, Carbide, TiAlN Coated, Ball End Mill
OSG VG441-7500-BN
$286.34
/ EA
Out of Stock
- Mill Diameter: 0.75 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Number of Flutes: 4
- Length of Cut: 0.875 in
- Material: Carbide
- Overall Length: 3.5 in
- Shank Diameter: 0.75 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Finish/Coating: TiAlN
- Single or Double End: Single End
- Helix Angle: 35 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Cutting Direction: Right Hand
- Diameter: 3/4 in
- Diameter - Fractional: 3/4 in
- End Type: Ball Nose
- Finish: TiAlN Coated
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.875 in
- Length of Cut - Fractional: 7/8 in
- Overall Length - Decimal: 3.5 in
- Overall Length - Fractional: 3-1/2 in
- Series: VG441BN
- Shank Type: Weldon Flat
- Flute Type: Spiral
- Diameter - Metric: 19.05 mm
- Diameter - Decimal: 0.75 in
The HY-PRO®-CARB VGx is an entire line up of variable geometry end mills designed to extend tool life and increase metal removal rates by decreasing chatter. Unequal flute spacing breaks up harmonic vibration typically created during milling, enabling cutting performance.
- Unequal flute spacing
- Reduces vibration from harmonic vibration, increasing life and enabling more aggressive milling
- Raised Land Configuration
- Provides additional stability when taking deeper depths of cut for more consistent performance during roughing
- TiAIN Coating
- Provides stable wear resistance in high temperature milling conditions.
Application: Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.Especially advantageous in 300, 400 and PH series Stainless Steels.Stable performance in Nickel Alloys and Cobalt Chrome.Larger sizes available with and without Weldon Flats.
OSG VG441-7500-BN Mill Diameter 3/4 in | Number of Flutes 4 | Length of Cut 1-1/4 in | Solid Carbide | 4 in | Ball End Mill
