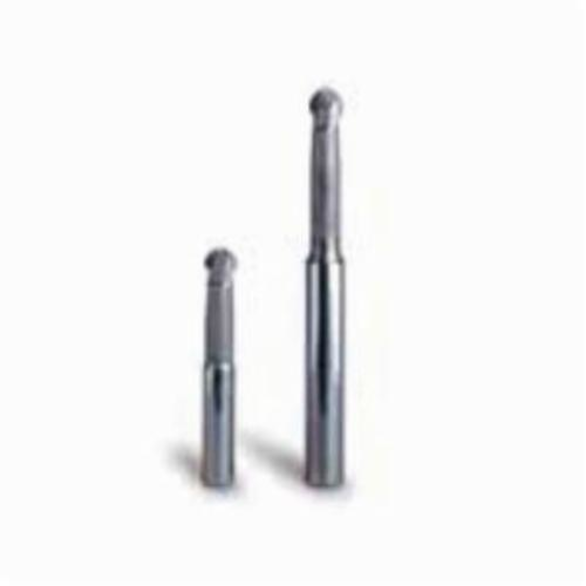

JABRO® H/Tornado 00022980 JH450 Ball End Single End End Mill SM
SECO 00022980
$154.44
/ EA
Out of Stock
- Mill Diameter: 5 mm
- Mill Diameter - Metric: 5 mm
- Number of Flutes: 2
- Length of Cut: 4.5 mm
- Material: Carbide
- Overall Length: 50 mm
- Shank Diameter: 6 mm
- Shank Diameter - Metric: 6 mm
- Single or Double End: Single End
- Helix Angle: 50 deg
- Capacity: 3/8 in
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 5 in
- Cutting Direction: Right Hand
- Extended Reach: No
- Flute Direction: R
- Length of Cut - Metric: 4.5 mm
- Overall Length - Metric: 50 mm
- Shank Type: Cylindrical
- Flute Type: Spiral
Seco® is offering you the Tornado program. Tornado is a complete range of solid carbide cutters espacially developed for high speed machining. Tornado is the result of continuous research into the best possible combination of solid carbide quality, cutter geometry and coatings in relation to the material to be machined.
- JABRO®-HSM/Tornado - High speed machining technology
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- MEGA-T is commonly used on aluminum, copper, titanium, graphite, hardened steels and plastic
- 90 deg cutting edge
- 1.417 in L minimum clamping
- 50 deg axial rake
- 18 deg radial rake
- 22.5 mm L reach
- 4.5 mm Dia neck
- G - Step Neck tool shape
- 2 teeth across centre cut
Radial Ramping, Plunging and Drilling Applications
JABRO JABRO HSM/Tornado End Mill | Ball End Single End | Series: JH450 | 5 mm Cutter Dia | 50 mm Overall Length | 6 mm | 4.5 mm Maximum Depth of Cut | 2 Flutes | Spiral Flute | 6 mm Shank Dia | Right Hand Cutting | 50 deg Helix Angle | Cylindrical Shank | ANSI Code: 450050-MEGA-T | ISO Code: 450050-MEGA-T | Solid Carbide | MEGA-T/PVD Coated
