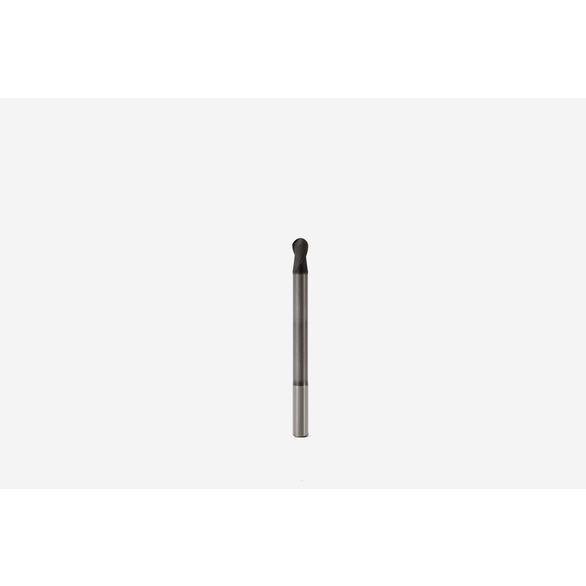

JABRO® Diamond 00023496 JD660 Ball End Center Cutting Single End End Mill, 0.157 in Dia Cutter, 1.181 in Length of Cut, 2 Flutes, 0.157 in Dia Shank, 2.362 in OAL, Diamond Coated

The Diamond line offers a wide range of geometries specially designed for graphite machining and covers diameters between 0.2 - 12.0 mm. The combination of hard metal and diamond coating was developed by Jabro Tools in such way that perfect adhesion of the coating is guaranteed.

• JABRO®-Diamond - Graphite machining technology
• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Diamond (CVD) coated tools are the hardest of the coatings, used exclusively for applications in non-ferrous materials such as aluminum, graphite, copper, and carbon fiber
• 90 deg cutting edge
• 0.078 in corner radius
• 1.102 in L minimum clamping
• 30 deg axial rake
• 10 deg radial rake
• D - Cylindrical tool shape
• 2 teeth across centre cut

For radial and ramping applications

JABRO JABRO Diamond End Mill | Ball End Center Cutting Single End | Series: JD660 | 0.157 in Cutter Dia | 2.362 in Overall Length | 0.157 in | 1.181 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 0.157 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: 660L040-DIAMOND | ISO Code: 660L040-DIAMOND | Solid Carbide | Diamond Coated
