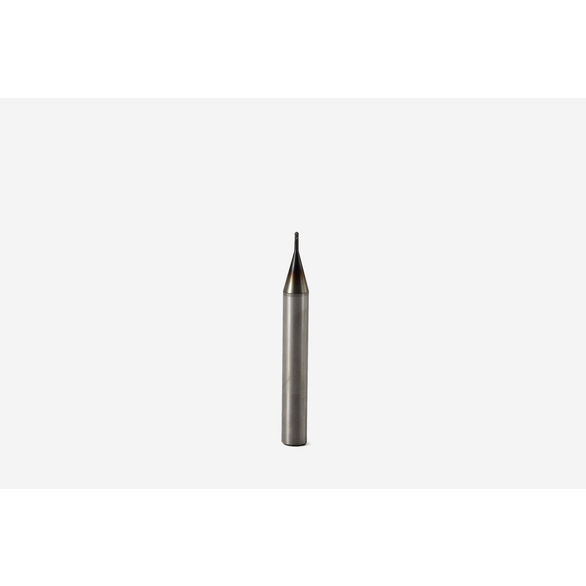

JABRO® Mini 02569088 JM116 Ball End Center Cutting Single End End Mill, 0.059 in Dia Cutter, 0.044 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 1.968 in OAL, MEGA-64-T/PVD Coated

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco® has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

• JABRO®-Mini - Micro machining technology
• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• MEGA-64-T is primarily used with miniature mills, it is commonly used in high speed applications on hardened steels
• 90 deg cutting edge
• 0.029 in corner radius
• 1.417 in L minimum clamping
• 30 deg axial rake
• 4 deg radial rake
• 0.055 in Dia neck
• 0.196 - 0.543 in L neck
• J - Tool shape
• 2 teeth across centre cut

Radial Ramping Applications

JABRO JABRO Mini End Mill | Ball End Center Cutting Single End | Series: JM116 | 0.059 in Cutter Dia | 1.968 in Overall Length | 0.236 in | 0.044 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 0.236 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: 116ML015TN-MEGA-64-T | ISO Code: 116ML015TN-MEGA-64-T | Solid Carbide | MEGA-64-T/PVD Coated
