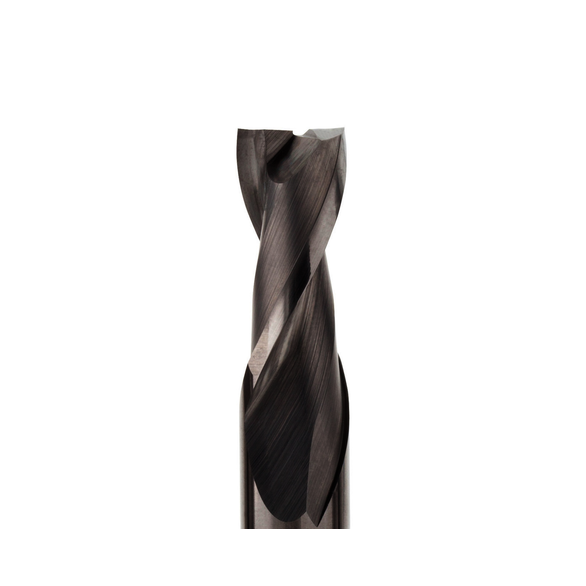

JABRO® Solid2 02881771 JS412 Center Cutting Regular Length Single End Square End End Mill, 6 mm Dia Cutter, 12 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 57 mm OAL, Uncoated

Seco's new generation of Jabro-Solid2 solid endmills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimised geometries and special edge preparations along with a new NXT coating technology.

• JABRO®-Solid2 - General machining technology
• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
• 90 deg cutting edge
• 36 mm L minimum clamping
• 30 deg axial rake
• 20 deg radial rake
• D - Cylindrical tool shape
• Uneven pitch

General Machining, Radial Ramping, Plunging and Drilling Applications

JABRO JABRO Solid2 End Mill | Center Cutting Regular Length Single End Square End | Series: JS412 | 6 mm Cutter Dia | 57 mm Overall Length | 6 mm | 12 mm Maximum Depth of Cut | 2 Flutes | Spiral Flute | 6 mm Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Weldon Flat Shank | ANSI Code: JS412060D2SZ2.3 | ISO Code: JS412060D2SZ2.3 | Solid Carbide | Uncoated
