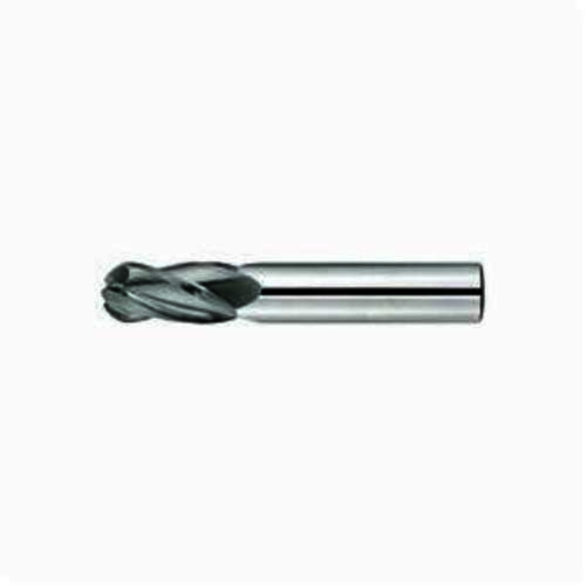

Niagara Cutter 17001082 CB430 Ball End Center Cutting Short Length Single End End Mill, 3/8 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2 in OAL, TiAlN Coated
SECO 17001082
$36.58
/ EA
Out of Stock
- Mill Diameter: 0.375 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Number of Flutes: 4
- Length of Cut: 0.625 in
- Material: Carbide
- Overall Length: 2 in
- Shank Diameter: 0.375 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Finish/Coating: TiAlN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutter Diameter: 3/8 in
- Cutter Diameter - Fractional: 3/8 in
- Cutting Direction: R
- Extended Reach: No
- Flute Direction: R
- Length of Cut - Decimal: 0.625 in
- Length of Cut - Fractional: 5/8 in
- Overall Length - Decimal: 2 in
- Part Number: N53984
- Series/List: CB430
- Shank Type: Cylindrical
- Variable Helix: No
- Flute Type: Spiral
- Variable Index: No
- General Purpose
- Center-cutting end mills can create three-dimensional shapes and profiles
- Solid carbide provides for better rigidity than high-speed steel
- Lower helix angle of 30° wraps slower and is optimized for the toughest roughing applications
- Titanium Aluminum Nitride (TiAlN) coating provides higher feeds, speeds, and tool life
- The coating allows the tool to be used in extremely heat-resistant, high-speed applications involving wet, semi-dry to dry cutting conditions
- 4-flute ball end mill with Niagara micro shield TiAlN coating
- Right-hand cut, Right-hand spiral, general-purpose finishing end mill
- Available in regular & long lengths with a lower helix angle (30°)
- Tool made from solid carbide
- The round shank accommodates a variety of holders
- The spiral multi-flute design allows for a faster and smoother cutting action.
Application:
Seco Tools N53984 3/8 in | 4 | 5/8 in | Solid Carbide | 2 | Ball End Mill
