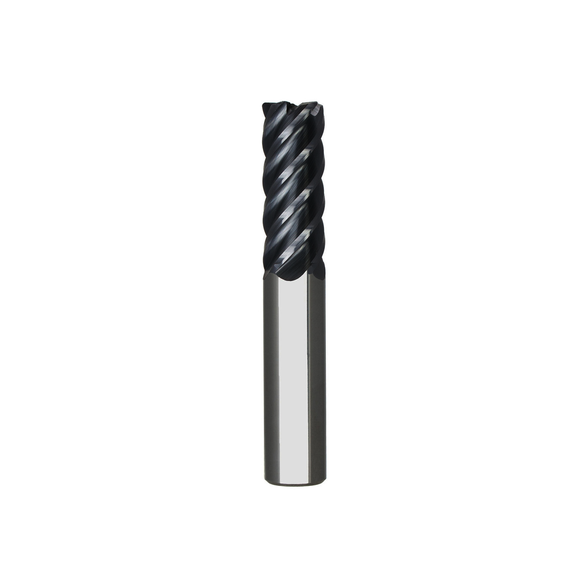

Niagara Cutter 17003583 Elite S545 Center Cutting High Performance Short Length Single End Square End End Mill, 5/32 in Dia Cutter, 5/16 in Length of Cut, 5 Flutes, 3/16 in Dia Shank, 2 in OAL, AlTiN Coated
SECO 17003583
$36.76
/ EA
Out of Stock
- Number of Flutes: 5
- Length of Cut: 5/16 in
- Material: Solid Carbide
- Finish/Coating: AlTiN Coated
- Shank Diameter: 3/16 in
- Shank Diameter - Fractional: 3/16 in
- Overall Length: 2 in
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Cutter Diameter: 5/32 in
- Cutter Diameter - Fractional: 5/32 in
- Flute Type: Spiral
- Length of Cut - Fractional: 5/16 in
- Overall Length - Decimal: 2 in
- Shank Type: Cylindrical
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
- 90 deg cutting edge
- 1.102 in L minimum clamping
- 45 deg axial rake
- 10 deg radial rake
- 10 deg neck
- Ideal for peripheral finish milling in steel, stainless steel, titanium and high temperature alloys
- F - Step tool shape
- Square nose end mills (also called square end) create sharp, unrounded cuts
Peripheral Finish Milling
Niagara Cutter End Mill | Center Cutting High Performance Short Length Single End Square End | Series: Elite S545 | 5/32 in Cutter Dia | 2 in Overall Length | 3/16 in | 5/16 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 3/16 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: S545-0.156-F2-S.0-Z5 | ISO Code: S545.156F2S.0Z5 | Solid Carbide | AlTiN Coated
