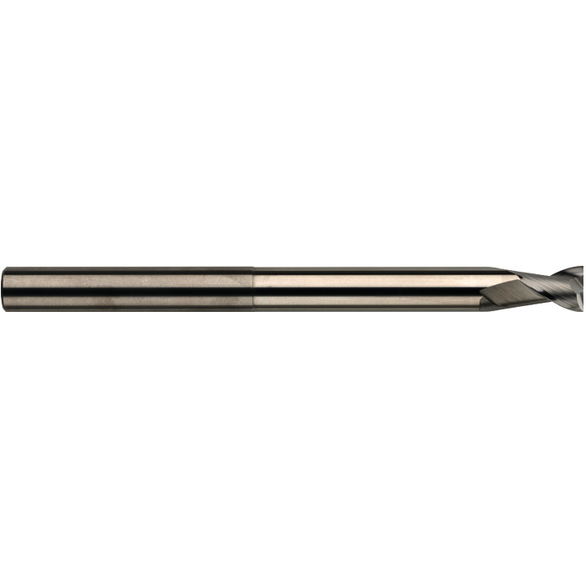

SGS 34685 47E Extended Fractional High Performance Square End High Performance End Mill, 3/4 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 6 in OAL, TB Coated
SGS 34685
$422.86
/ EA
Out of Stock
- Centercutting: No Center Cutting
- Mill Diameter: 3/4 in
- Number of Flutes: 2
- Length of Cut: 1 in
- Material: Micrograin Solid Carbide
- Finish/Coating: Ti-NAMITE-B Coated
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 195 mm
- Single or Double End: Single End
- Overall Length: 6 in
- Cutting Direction: Right Hand
- Helix Angle: 35 deg
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Diameter: 0.75 in
- Extended Reach: Yes
- Finish: TiB2
- Overall Length - Decimal: 6 in
- Overall Length - Metric: 6 mm
- Series: 47E
- Shank Length: 5 in
- Shank Type: Straight
- Type: Extended Fractional High Performance Square End
- Flute Type: Spiral
- Diameter - Decimal: 0.75 in
- Positive rake angle
- Circular land provides stability with superior surface finishes
- Engineered flute design for effective chip removal at high feed rates
- Many options in number of flutes, reach and end geometry
- Applicable materials : non-ferrous materials, plastics and composites
- 2-1/8 in reach
Application: Aerospace, Medical, Power Generation, Automotive, Mold and Die, Castings and Foundries, General Engineering
SGS® High Performance End Mill | Long Reach Neck Square End | Series: S-Carb | 47ES | 3/4 in Cutter Dia | 6 in Overall Length | 1 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 35 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | TiB2 Coated
