SUMITOMO

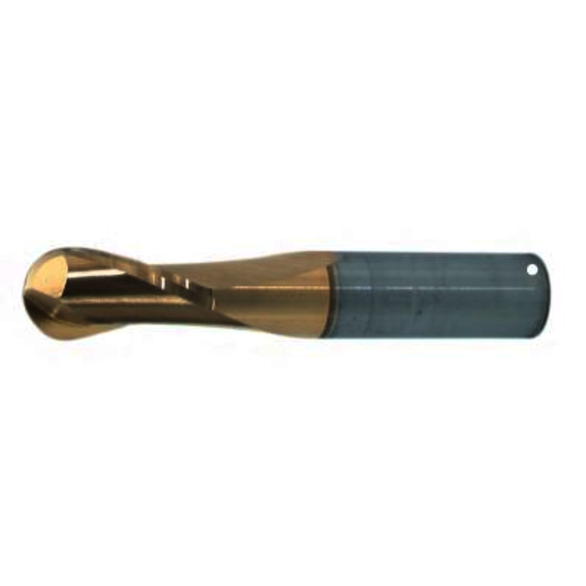

Sumitomo Electric Carbide U100174 Mill Diameter 1/16 in, Number of Flutes 2, Length of Cut 1/4 in, Ball End Mill
SUMI U100174
$34.54
/ EA
- Mill Diameter: 0.0625 in
- Mill Diameter - Decimal: 0.0625 in
- Mill Diameter - Fractional: 1/16 in
- Mill Diameter - Metric: 1.59 mm
- Number of Flutes: 2
- Length of Cut: 0.25 in
- Material: Carbide
- Overall Length: 1.5 in
- Shank Diameter: 0.125 in
- Shank Diameter - Decimal: 0.125 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Finish/Coating: TiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Direction: Right Hand
- Extended Reach: No
- Flute Type: Spiral
- Length of Cut - Decimal: 0.25 in
- Length of Cut - Fractional: 1/4 in
- Length of Cut - Metric: 6.35 mm
- Nose Radius: 0.0312 in
- Overall Length - Decimal: 1.5 in
- Overall Length - Metric: 38.1 mm
- Variable Index: No
- Flute Direction: Right Hand
- Variable Helix: No
Standard/Approvals:MZBI204C
Sumitomo Electric Carbide U100174 Mill Diameter 1/16 in | Number of Flutes 2 | Length of Cut 1/4 in | Carbide | 1-1/2 in | Ball End Mill
