SUMITOMO

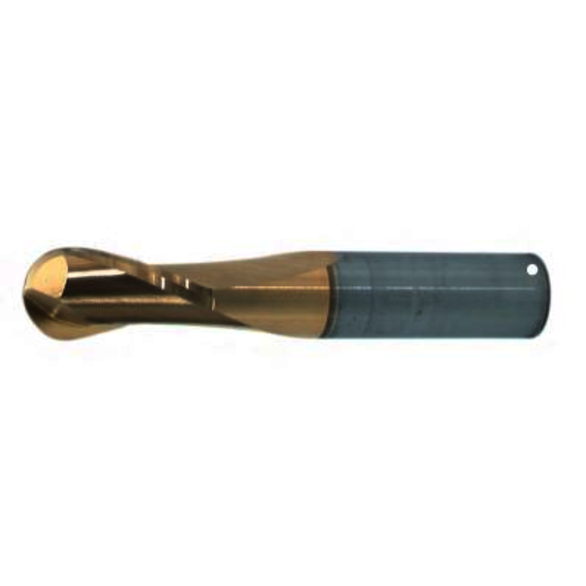

Sumitomo Electric Carbide U100206 Mill Diameter 3/16 in, Number of Flutes 4, Length of Cut 1/2 in, Ball End Mill
SUMI U100206
$38.09
/ EA
- Mill Diameter: 0.1875 in
- Mill Diameter - Decimal: 0.1875 in
- Mill Diameter - Fractional: 3/16 in
- Mill Diameter - Metric: 4.7625 mm
- Number of Flutes: 4
- Length of Cut: 0.5 in
- Material: Carbide
- Overall Length: 2 in
- Shank Diameter: 0.1875 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.7625 mm
- Finish/Coating: TiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Direction: Right Hand
- Extended Reach: No
- Flute Type: Spiral
- Length of Cut - Decimal: 0.5 in
- Length of Cut - Fractional: 1/2 in
- Length of Cut - Metric: 12.7 mm
- Nose Radius: 0.0937 in
- Overall Length - Decimal: 2 in
- Overall Length - Metric: 50.8 mm
- Variable Index: No
- Flute Direction: Right Hand
- Variable Helix: No
Standard/Approvals:MZBI412C
Sumitomo Electric Carbide U100206 Mill Diameter 3/16 in | Number of Flutes 4 | Length of Cut 1/2 in | Carbide | 2.0000 in | Ball End Mill
