SUMITOMO

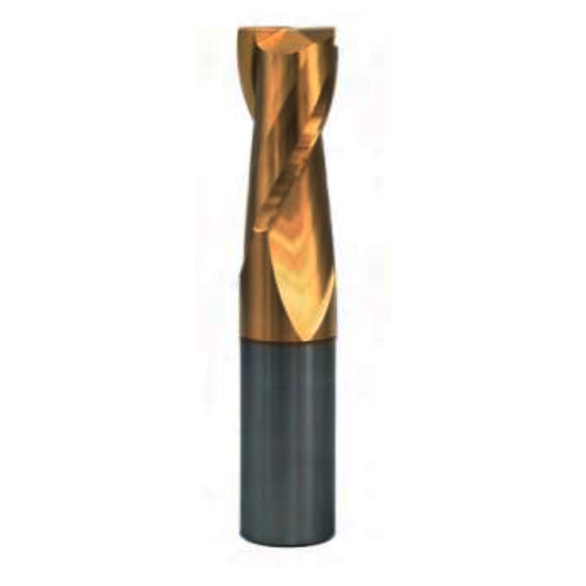

Sumitomo Electric Carbide U100237 Mill Diameter 3/16 in, Number of Flutes 2, Length of Cut 5/8 in, Square End Mill
SUMI U100237
$15.33
/ EA
- Centercutting: No
- Mill Diameter: 3/16 in
- Mill Diameter - Decimal: 0.1875 in
- Mill Diameter - Fractional: 3/16 in
- Number of Flutes: 2
- Length of Cut: 5/8 in
- Material: Solid Carbide
- Finish/Coating: Bright, Uncoated
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Single or Double End: Single End
- Overall Length: 2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Chipbreaker: No
- Coolant Through: No
- Extended Reach: No
- Mill Diameter Tolerance: +0.0000 to -0.0020 in
- Series/List: MZI2
- Shank Diameter Tolerance: +0.0000 to -0.0003 in
- Flute Type: Spiral
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:MZI212
Sumitomo Electric Carbide U100237 Mill Diameter 3/16 in | Number of Flutes 2 | Length of Cut 5/8 in | Carbide | Uncoated | Square End Mill
