SUMITOMO

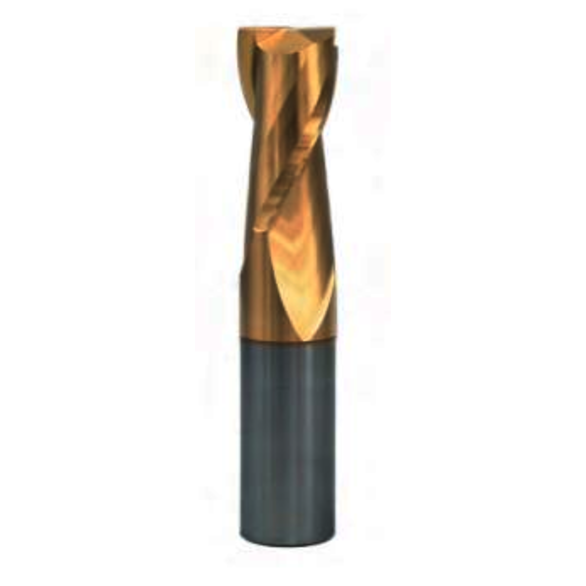

Sumitomo Electric Carbide U100238 Mill Diameter 3/16 in, Number of Flutes 2, Length of Cut 5/8 in, Square End Mill
SUMI U100238
$30.59
/ EA
- Centercutting: Centercutting
- Mill Diameter: 3/16 in
- Mill Diameter - Decimal: 0.1875 in
- Mill Diameter - Fractional: 3/16 in
- Number of Flutes: 2
- Length of Cut: 5/8 in
- Material: Solid Carbide
- Finish/Coating: TiN-Coated
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 1.27
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 3.00 mm
- Single or Double End: Single End
- Overall Length: 2 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Chipbreaker: No
- Connection Diameter - Metric: 31.75
- connection style: 10
- Coolant Through: No
- Extended Reach: No
- Flute Type: Spiral
- Mill Diameter Tolerance: +0.0000 to -0.0020 in
- Series/List: MZI2
- Shank Diameter Tolerance: +0.0000 to -0.0003 in
- StOB-Class: bnj1
- Supplier Id: CE
- Supplier Part Number: 1589625401
- UNSPSC: 23291503
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:MZI212C
Sumitomo Electric Carbide U100238 Mill Diameter 3/16 in | Number of Flutes 2 | Length of Cut 5/8 in | Carbide | TiN | Square End Mill
