SUMITOMO

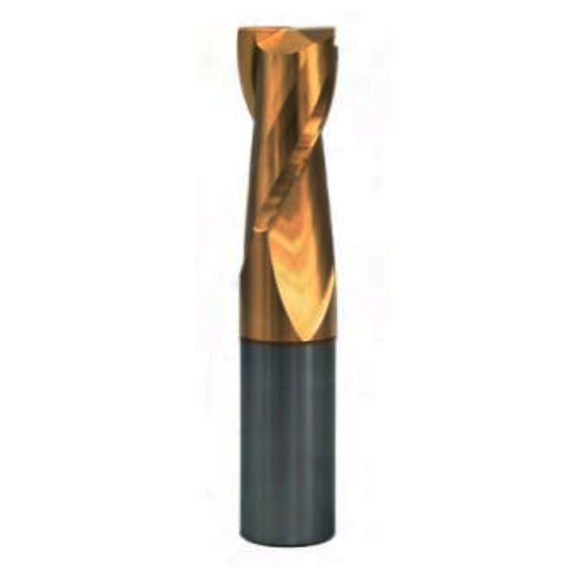

Sumitomo Electric Carbide U100336 Mill Diameter 0.3740 in, Number of Flutes 2, Length of Cut 0.5906 in, Square End Mill
SUMI U100336
$44.81
/ EA
- Centercutting: No
- Mill Diameter: 0.374 in
- Mill Diameter - Decimal: 0.3740 in
- Number of Flutes: 2
- Length of Cut: 0.5906 in
- Material: Solid Carbide
- Finish/Coating: TiN-Coated
- Shank Diameter: 10 mm
- Shank Diameter - Metric: 10.00 mm
- Single or Double End: Single End
- Overall Length: 70 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Chipbreaker: No
- Coolant Through: No
- Extended Reach: No
- Flute Type: Spiral
- Series/List: MZM
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:MZM2095C
Sumitomo Electric Carbide U100336 Mill Diameter 0.3740 in | Number of Flutes 2 | Length of Cut 0.5906 in | Carbide | TiN | Square End Mill
