SUMITOMO

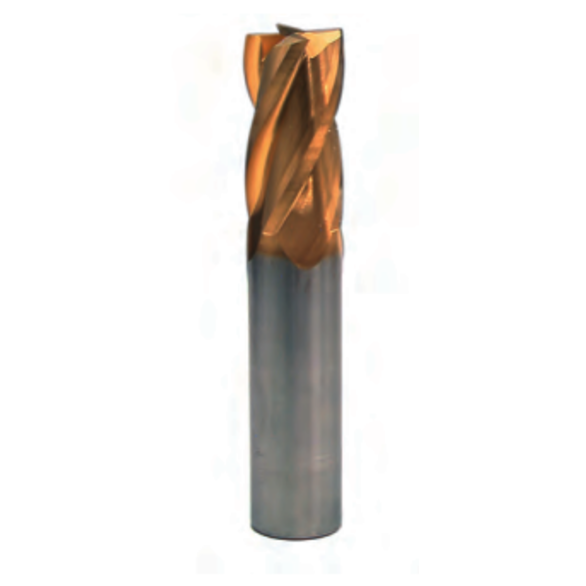

Sumitomo Electric Carbide U100398 Mill Diameter 0.3740 in, Number of Flutes 4, Length of Cut 0.5906 in, Square End Mill
SUMI U100398
$48.93
/ EA
- Centercutting: Centercutting
- Mill Diameter: 9.5 mm
- Mill Diameter - Decimal: 0.3740 in
- Mill Diameter - Metric: 9.50 mm
- Number of Flutes: 4
- Length of Cut: 15 mm
- Material: Solid Carbide
- Finish/Coating: TiN-Coated
- Shank Diameter: 10 mm
- Shank Diameter - Metric: 10.00 mm
- Single or Double End: Single End
- Overall Length: 70 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Chipbreaker: No
- Coolant Through: No
- Extended Reach: No
- Flute Type: Spiral
- Mill Diameter Tolerance: +0.0000 to -0.0762 mm
- Shank Diameter Tolerance: +0.00000 to -0.00889 mm
- High Rigidity
- Excellent Surface Finishes
- Center Cutting
- Economical
- Excellent Chip Control.
Sumitomo Electric Carbide U100398 Mill Diameter 0.3740 in | Number of Flutes 4 | Length of Cut 0.5906 in | Carbide | TiN | Square End Mill
