SUMITOMO

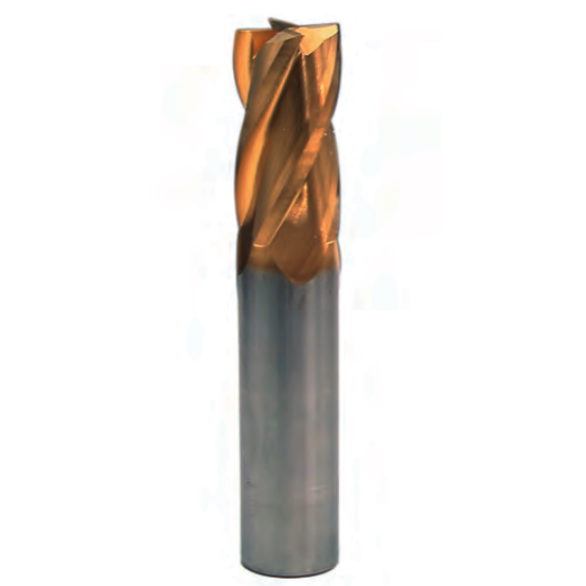

Sumitomo Electric Carbide U100420 Mill Diameter 0.7874 in, Number of Flutes 4, Length of Cut 1.5748 in, Square End Mill
SUMI U100420
$347.71
/ EA
- Centercutting: Centercutting
- Mill Diameter: 20 mm
- Mill Diameter - Decimal: 0.7874 in
- Mill Diameter - Metric: 20.00 mm
- Number of Flutes: 4
- Length of Cut: 40 mm
- Material: Solid Carbide
- Finish/Coating: TiN-Coated
- Shank Diameter: 20 mm
- Shank Diameter - Metric: 20.00 mm
- Single or Double End: Single End
- Overall Length: 100 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Chipbreaker: No
- Coolant Through: No
- Extended Reach: No
- Flute Type: Spiral
- Mill Diameter Tolerance: +0.0000/-0.0762 mm
- Series/List: MZM
- Shank Diameter Tolerance: +0.00000/0.01270 mm
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:MZM4200C
Sumitomo Electric Carbide U100420 Mill Diameter 0.7874 in | Number of Flutes 4 | Length of Cut 1.5748 in | Carbide | TiN | Square End Mill
