SUMITOMO

Sumitomo Electric Carbide U104239 9/16 in, 135 Degree, 0.1165 in, Screw Machine Length Drill Bit

SUMI U104239
$670.79 / EA

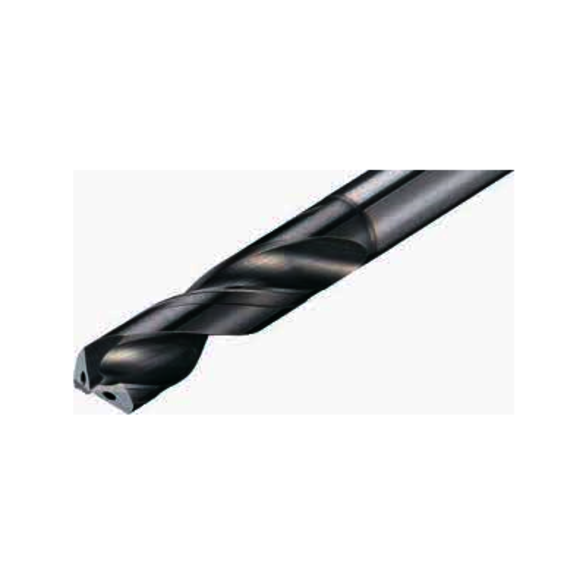

Image for SUMI U104239
  • Overall Length: 5.6283 in
  • Flute Length: 2.9708 in
  • Length Type: Screw Machine Length
  • Shank Diameter - Decimal: 0.6299 in
  • Shank Length: 2.5590 in

The GS and HGS styles (Super MultiDrill) are solid carbide drills that employ a new flute design and wide chip pocket to achieve excellent chip control and evacuation.DEX coating enables long, stable tool life over a wide cutting range, with various work materials and applications.

  • Long tool life
  • New cutting edge design and special DEX Coating provide long tool life for a wide variety of work materials
  • Stable chip evacuation
  • New flute shape significantly improves chip control and evacuation
  • Quiet cutting and stable cutting force
  • Stable drilling with little wobble even in small machine applications
  • Environmentally friendly
  • Also compatible with the MQL (Minimum Quantity Lubrication) system

Standard/Approvals:MDW05625HGS3S

Application:

  • Structural Alloy Steel for Automotive
  • Alloy Bearing Steel
  • Machining automotive componentss
  • Low Carbon Steel Machine Components

    • Sumitomo Electric Carbide U104239 9/16 in | 135 Degree | 0.1165 in | Solid Carbide | Screw Machine Length Drill Bit
