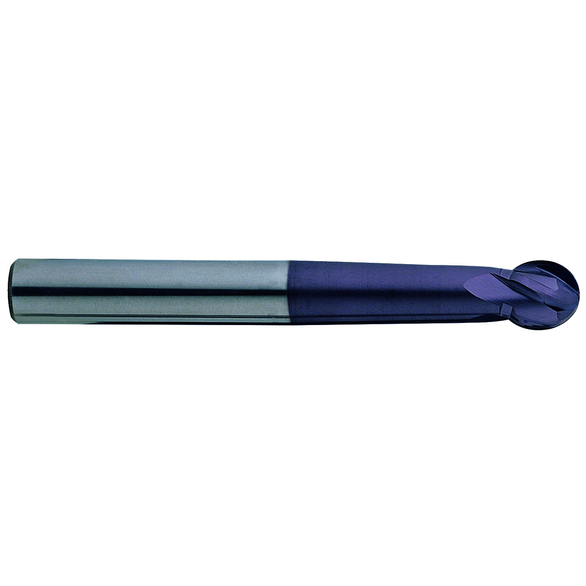

YG-1 93419 EM097 X-POWER Ball Nose Long Length Sphere End Mill, 1/4 in Dia Cutter, 0.2 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 4 in OAL, TiAlN Coated
YG1 93419
$118.94
/ EA
Out of Stock
- Mill Diameter: 0.25 in
- Mill Diameter - Decimal: 0.25 in
- Mill Diameter - Fractional: 1/4 in
- Mill Diameter - Metric: 6.35 mm
- Number of Flutes: 4
- Length of Cut: 0.2 in
- Material: Carbide
- Overall Length: 4 in
- Shank Diameter: 0.25 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Finish/Coating: AlTiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Direction: Right Hand
- Flute Type: Finisher
- Length of Cut - Decimal: 0.2 in
- Length of Cut - Metric: 5.08 mm
- Nose Radius: 1/8 in
- Overall Length - Decimal: 4 in
- Overall Length - Metric: 101.6 mm
- Flute Direction: Right Hand
Features and Benefits:
Designed for copy milling
Increased feed rates
15 degree inclination
Shhere Angle: 250 degree
Designed for copy milling
Increased feed rates
15 degree inclination
Shhere Angle: 250 degree
