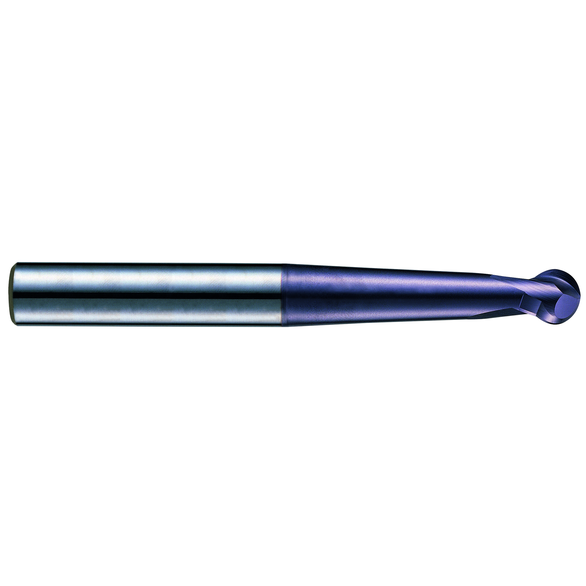

YG-1 EM863050 EM863 X-POWER Ball Nose Center Cut High Performance Long Length Metric Sphere End Mill, 5 mm Dia Cutter, 3.9 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 80 mm OAL, AlTiN Coated
YG1 EM863050
$65.90
/ EA
Out of Stock
- Mill Diameter: 5 mm
- Mill Diameter - Decimal: 0.1969 in
- Mill Diameter - Metric: 5 mm
- Number of Flutes: 2
- Length of Cut: 3.9 mm
- Material: Carbide
- Overall Length: 80 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.2362 in
- Shank Diameter - Metric: 6 mm
- Finish/Coating: AlTiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Direction: Right Hand
- End Type: Ball Nose
- Length of Cut - Decimal: 0.1535 in
- Length of Cut - Metric: 3.9 mm
- Neck Diameter: 0.16141 in
- Neck Diameter - Decimal: 0.16141 in
- Neck Diameter - Metric: 4.1 mm
- Overall Length - Metric: 80 mm
- Series: EM863 X-POWER
- Shank Type: Plain
- Type: High Performance;Sphere
- Flute Direction: Right Hand
Features and Benefits:
Designed for copy milling
Increased feed rates
15 degree inclination
Shhere Angle: 250 degree
Designed for copy milling
Increased feed rates
15 degree inclination
Shhere Angle: 250 degree
