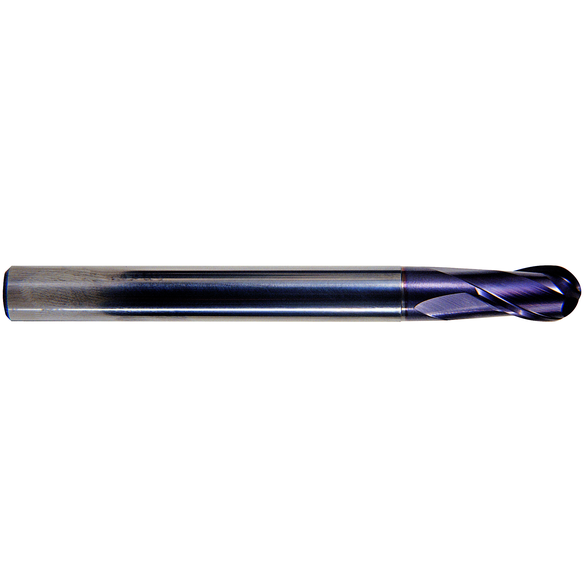

YG-1 EM899100 EM899 X-POWER Ball Nose Center Cut High Performance Medium Length Metric End Mill With Neck, 10 mm Dia Cutter, 18 mm Length of Cut, 2 Flutes, 10 mm Dia Shank, 100 mm OAL, AlTiN Coated
YG1 EM899100
$150.12
/ EA
Out of Stock
- Mill Diameter: 10 mm
- Mill Diameter - Decimal: 0.3937 in
- Mill Diameter - Metric: 10 mm
- Number of Flutes: 2
- Length of Cut: 18 mm
- Material: Carbide
- Overall Length: 100 mm
- Shank Diameter: 10 mm
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Finish/Coating: AlTiN
- Single or Double End: Single End
- Helix Angle: 30 deg
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Direction: Right Hand
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.7087 in
- Length of Cut - Metric: 18 mm
- Overall Length - Decimal: 3.937 in
- Overall Length - Metric: 100 mm
Yg-1 End Mill, Ball Nose Center Cut High Performance Medium Length Metric, Series: 12066, 10 Mm Cutter Dia, 100 Mm Overall Length, 18 Mm Length Of Cut, 2 Flutes, Spiral Flute, 10 Mm Shank Dia, Right Hand Cutting, 30 Deg Helix Angle, Plain Shank, Micrograin Carbide, Altin Coated
- Deep Slotting Milling Is Possible By Reduced Neck
- High Efficiency Milling Is Possible In Deep Slotting With Projection Of The End Mill Being Long
Yg-1 Cutting Tools Em899100 10.0000 Mm Cut Dia | 10.0000 Mm Shank Dia | 100.0000 Mm Oal | Plain | Indexable Ball Nose End Mill
