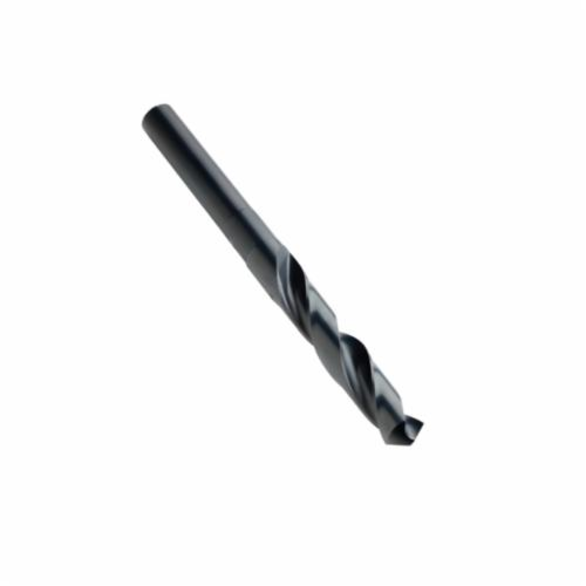

Dormer A170 General Purpose Jobber Length Type N Reduced Parallel Shank Drill, 37/64 in Dia x 6 in OAL, 1/2 in, HSS
PREDOR 0121894
$52.68
/ EA
Out of Stock
- Applicable Material: Magnetic Soft Steel, Alloy Steel, Lamellar Graphite, Aluminum, Magnesium, Unalloyed and Copper
- Cutting Depth: 4xD
- Cutting Edge Material: High Speed Steel
- Diameter - Decimal: 0.57812 in
- Diameter - Fractional: 37/64 in
- Diameter - Metric: 14.68 mm
- Flute Length: 3-1/8 in
- Flute Type: Standard Spiral
- Point Angle: 118 deg
- Point Type: Conventional
- Series: A170
- Shank Size: 1/2 in
- Shank Type: Reduced
- Type: General Purpose;Jobber Length;Type N
- Overall Length: 6 in
- Material: High Speed Steel
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Oxide coating prevents chip building, galling and welding on the workpiece
- It is commonly used on low carbon metals, stainless steel and ferrous metals
- Straight shanks are used for general purpose applicationsthey are used with portable drills and drill presses on ferrous and non-ferrous materials
- Regular helix form
- Shank is smaller than the drill bit diameter they are used with portable drills and drill presses
- No coolant channel
Dormer Reduced Parallel Shank Drill| General Purpose| Jobber Length| Type N| Series: A170| 37/64 in Dia| 6 in Overall Length| 4XD Cutting Depth| 2 Flutes| Standard Spiral Flute| 3-1/8 in Flute Length| 1/2 in Shank| Reduced Shank| 118 deg Point| Conventional Point| Right Hand Cutting| HSS Cutting Edge| HSS| Steam/Black Oxide| Applicable Materials: Magnetic Soft Steel| Alloy Steel| Lamellar Graphite| Aluminum| Magnesium| Unalloyed and Copper
