Walter Tools

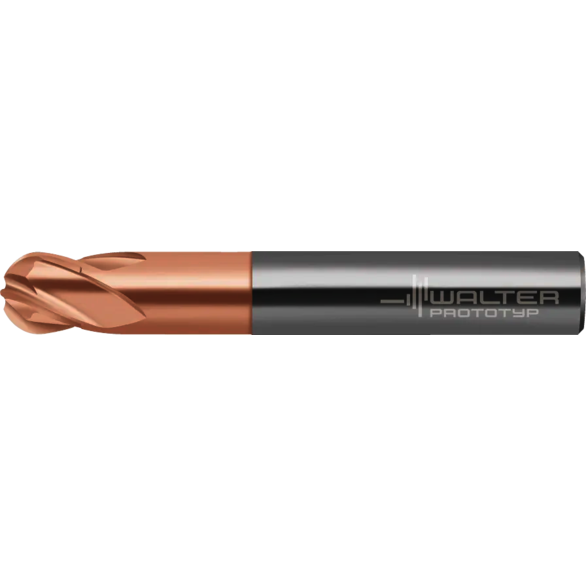

MILLING CUTTERS MC482-10.0A4BC-WB10TG
PROTYP 7255235
$408.69
/ EA
Out of Stock
- Centercutting: Center Cutting
- Coolant Through: No
- Cutting Depth Max: 8 mm
- Cutting Diameter: 10 mm
- Cutting Diameter - Metric: 10 mm
- Cutting Direction: Right Hand
- Extended Reach: Yes
- Finish/Coating: TiAlSiN
- Functional Length: 83 mm
- Functional Length - Metric: 83 mm
- Head Length: 38 mm
- Head Length - Metric: 38 mm
- Helix Angle: 30 deg
- Length of Cut: 8 mm
- Length of Cut - Decimal: 0.315 in
- Length of Cut - Metric: 8 mm
- Material: Carbide
- Mill Diameter: 10 mm
- Mill Diameter - Decimal: 0.394 in
- Mill Diameter - Metric: 10 mm
- Neck Diameter: 9.85 mm
- Neck Diameter - Metric: 9.85 mm
- Number of Flutes: 4
- Overall Length - Decimal: 3.268 in
- Overall Length - Metric: 83 mm
- Protruding Length: 38 mm
- Protruding Length - Metric: 38 mm
- Shank Diameter: 12 mm
- Shank Diameter - Decimal: 0.472 in
- Single or Double End: Single End
- Overall Length: 83 mm
- Shank Diameter - Metric: 12 mm
- Flute Direction: Right Hand
MILLING CUTTERS MC482-10.0A4BC-WB10TG
