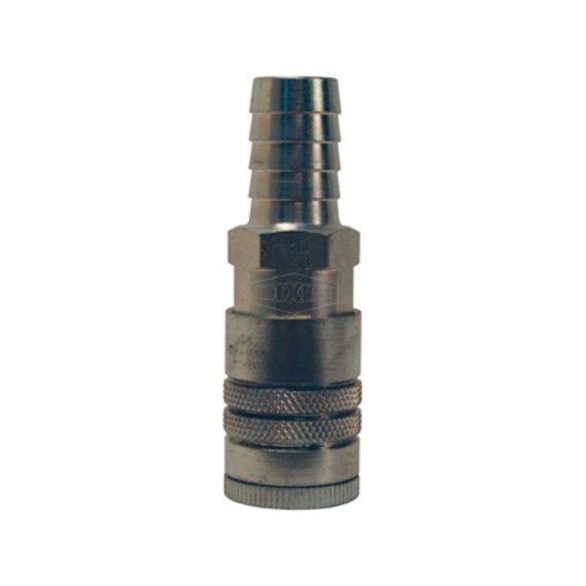

Dixon Air Chief Industrial Quick-Connect Coupler, 1/2 in, Hose Barb, Steel, Domestic
DIXVAL DC1045
$29.74
/ EA
Out of Stock
- Dimensions: 1-3/16 in OD x 3-5/16 in L
- Domestic/Import: Domestic
- End Type: Hose Barb
- Fitting/Connector Type: Coupler
- Material: Steel
- Nominal Size: 1/2 in
- Pressure Rating: 300 psi
- Series: Air Chief Industrial
- Temperature Rating: -40 to 250 deg F
- Warranty: Limited
- 150 cfm at 100 psi flow rate
- Couplers shut-off when disconnected
- Semi-automatic pull sleeve to connect
- For air service only
- Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination
- Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
- Air chief industrial couplers are the popular industrial design and will interchange with many other makes
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Dixon Quick-Connect Coupler | Series: Air Chief Industrial | Fitting/Connector Type: Coupler | 1/2 in Nominal Size | Hose Barb | 300 psi | -40 to 250 deg F | Steel | 1-3/16 in OD x 3-5/16 in L | Domestic
