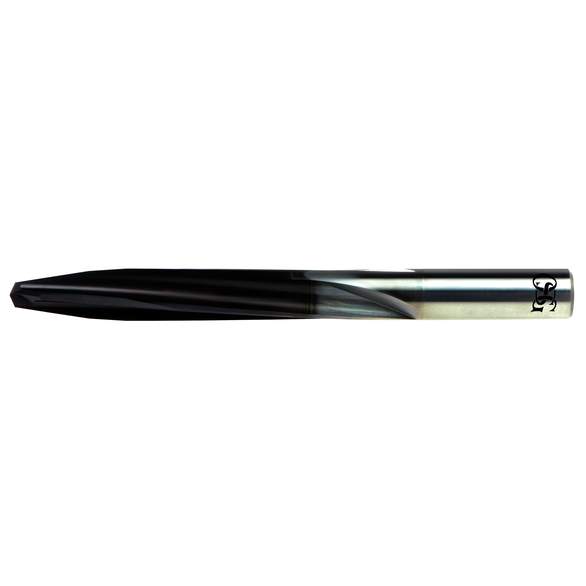

OSG 752037616 Straight-Flute Drill Bit, 130 Degree, 0.37500 in, Straight Flute & Die Drill Bit
OSG 752037616
$492.10
/ EA
Out of Stock
- Material: Carbide
- Number of Flutes: 4
- Drill Bit Size - Fractional: 3/8 in
- Point Angle: 130
- Overall Length: 4.0000 in
- Cutting Direction: Right Hand
- Cutting Edge Material: Carbide
- Finish: Diamond Coated
- Flute Length: 2.3000 in
- Flute Length - Metric: 58.4 mm
- Flute Type: Helical
- Overall Length - Decimal: 101.6 mm
- Point Type: Standard
- Series: 7520
- Shank Size: 9.55
- Shank Type: Straight
The EXOPRO® AERO-D-REAM is a diamond coated drill/reamer designed to excel in carbon and glass fiber composites. It features a tapered 4-flute design and OSG's patented diamond coating.
- Straight flute
- Limits peel-up at hole entrance
- Elongated double-angle geometry
- Reduces thrust and limit exit delamination
- OSG's patented diamond coating
- Ensures smoother and sharper cutting edges providing up to 50 times longer tool life
Application:CFRPCFRP/NomexGFRP/NomexCFRP/AlCarbon
OSG 752037616 Straight-Flute Drill Bit | 130 Degree | 0.37500 in | Solid Carbide | Diamond | Straight Flute & Die Drill Bit
