Walter Tools

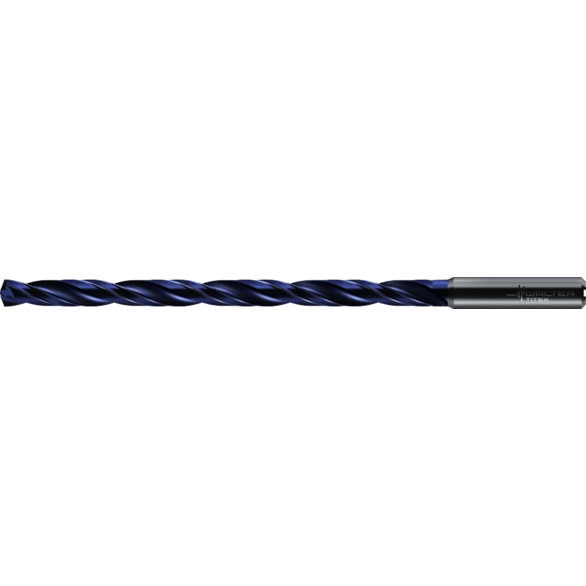

DRILL 9MM 12XD DC150-12-09.000A1-WJ30TA
TITEX 6618818
$232.20
/ EA
Out of Stock
- Applicable Material: Cast Aluminum Wrought, Copper and Copper Alloy, Spheroidal Graphite, Carbon and Glass Fiber Reinforced, GGV, Gray/Hardened Cast Iron and Steel, Heat Resistant Alloy, High and Low, Non Alloy Steel, Molybdenum Alloy, Stainless Steel and Titanium
- Drill Bit Diameter Tolerance: m7
- Flute Length x Diameter Ratio: 12XD
- Number of Flutes: 2
- Shank Diameter - Decimal: 0.394 in
- Drill Bit Size - Decimal: 0.3543 in
- Drill Bit Finish/Coating: TiNAl
- Overall Length: 7.087 in
- Through Coolant: Yes
- Cutting Depth: 4.843 in
- Cutting Direction: Right Hand
- Cutting Edge Material: Solid Carbide
- Flute Length: 5.433 in
- Flute Type: Spiral
- Material Grade: WJ30TA
- Maximum Drilling Depth: 4.843 in
- Shank Length: 1.575 in
- Shank Type: Straight-Cylindrical
- Point Type: Spiral
DRILL 9MM 12XD DC150-12-09.000A1-WJ30TA
