Walter Tools

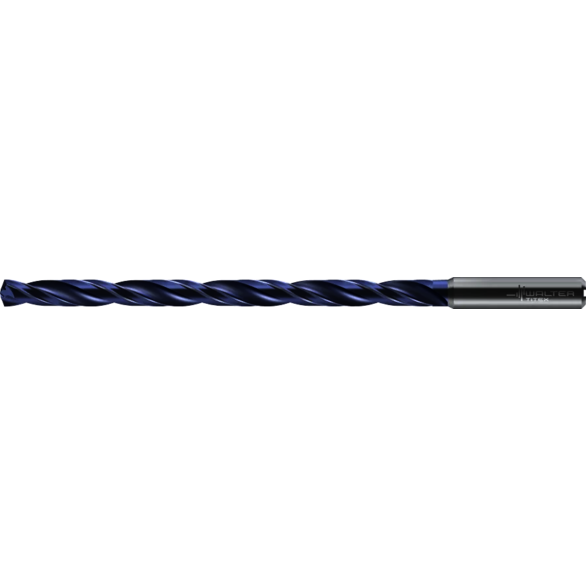

PERFORM DC150 12XD SOLID CARBIDE WJ30TA
TITEX 6618852
$539.14
/ EA
Out of Stock
- Applicable Material: Cast Aluminum Wrought, Copper and Copper Alloy, Spheroidal Graphite, Carbon and Glass Fiber Reinforced, GGV, Gray/Hardened Cast Iron and Steel, Heat Resistant Alloy, High and Low, Non Alloy Steel, Molybdenum Alloy, Stainless Steel and Titanium
- Drill Bit Diameter Tolerance: m7
- Flute Length x Diameter Ratio: 12XD
- Number of Flutes: 2
- Shank Diameter - Decimal: 0.551 in
- Drill Bit Size - Decimal: 1/2 in
- Drill Bit Finish/Coating: TiNAl
- Overall Length: 9.055 in
- Through Coolant: Yes
- Cutting Depth: 6.614 in
- Cutting Direction: Right Hand
- Cutting Edge Material: Solid Carbide
- Flute Length: 7.165 in
- Material Grade: WJ30TA
- Maximum Drilling Depth: 6.614 in
- Point Type: Spiral
- Shank Length: 1.772 in
- Shank Type: Straight-Cylindrical
- Flute Type: Spiral
PERFORM DC150 12XD SOLID CARBIDE WJ30TA
