Mitsubishi

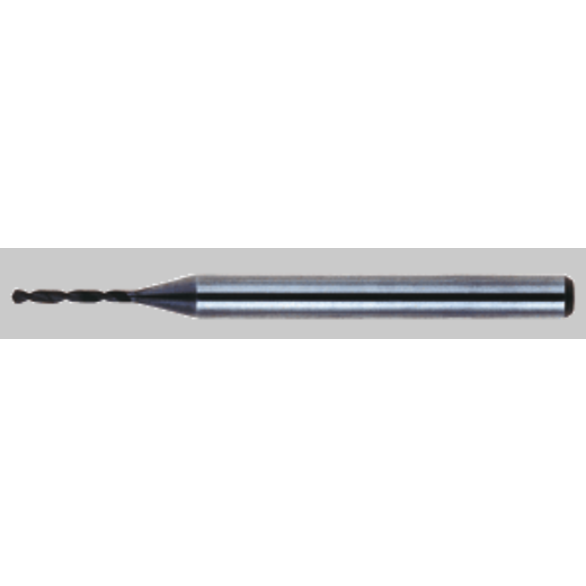

DRILL SOLID CARBIDE DCSSSD0120
MITMAT 679164
$275.46
/ EA
Out of Stock
- Series: KUB QUATRON
- Shank Diameter - Metric: 3.00 mm
- Overall Length: 142.977, 38.00 mm
- Body Length: 111.98 mm
- Chipbreaker: LU
- connection style: 1
- Connector Size: 50
- Corner Radius: 1/64 in
- Drill Diameter: 35.72 mm
- Drill Diameter - Decimal: 1.42848
- Drill Diameter - Metric: 35.712
- Flute Length: 8.30 mm
- Hole Diameter - Decimal: 0.0840 in
- Included Angle: 55 Degree
- Inscribed Circle Size: 0.394 in
- Insert Size: 120508
- Insert Style: TRM
- Material: Carbide
- Material Grade: AC820P
- Maximum Drill Depth: 72.00 mm
- Overall Length/Projection: 142.97 mm
- Part Number: 1587935795
- Relief Angle: 0 Degree
- Shape: Triangular
- StOB-Class: bnj1
- Supplier Id: CE
- Supplier Part Number: 1587935795
- Thickness: 0.1970 in
- UNSPSC: 23291503
- Usable Length: 72.009
Standard/Approvals:DCSSSD0120
Mitsubishi 679164 | Drill Body
