Widia

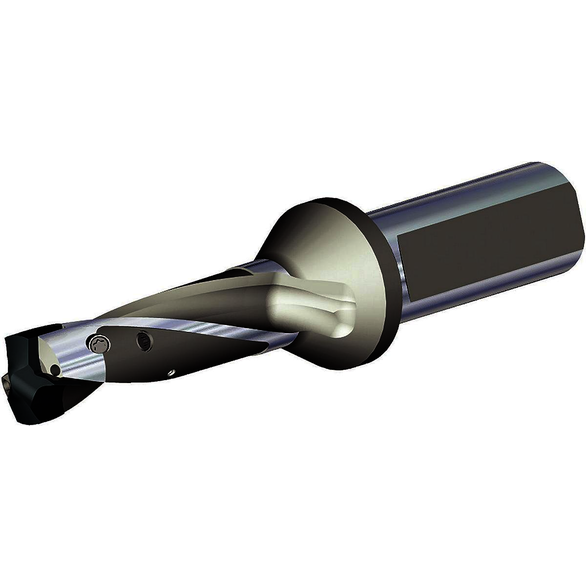

TDMX DRILL BODY D.985 3XD SL SHANK 1.25 TDMX0985R3SL125

WIDIA 6572195
$687.48 / EA
Out of Stock
TDMX DRILL BODY D.985 3XD SL SHANK 1.25 TDMX0985R3SL125
  • Shank Diameter - Decimal: 1.25 in
  • Shank Diameter - Metric: 31.75 mm
  • Overall Length: 7.1654 in
  • Flute Length x Diameter Ratio: 3
  • Insert Seat Size: J
  • Maximum Drill Depth: 3.0709 in
  • Maximum Drill Diameter - Decimal: 1.0236 in
  • Maximum Drill Diameter - Metric: 25.999 mm
  • Minimum Drill Diameter - Decimal: 0.9843 in
  • Minimum Drill Diameter - Metric: 25 mm
  • Number of Flutes: 2
  • Shank Length: 2.3622 in
  • Flanged shank with a single flat for maximum rigidity
  • Internal coolant channels
  • Front clamping. No needs to disassemble the body from the tool holder to change the insert
  • Highly engineered pocket seat design for high stability even in critical operations
