Widia

TDMX DRILL BODY D1.182 8XD SL SHANK 1.25 TDMX1182R8SL125

WIDIA 6572261
$993.62 / EA
Out of Stock

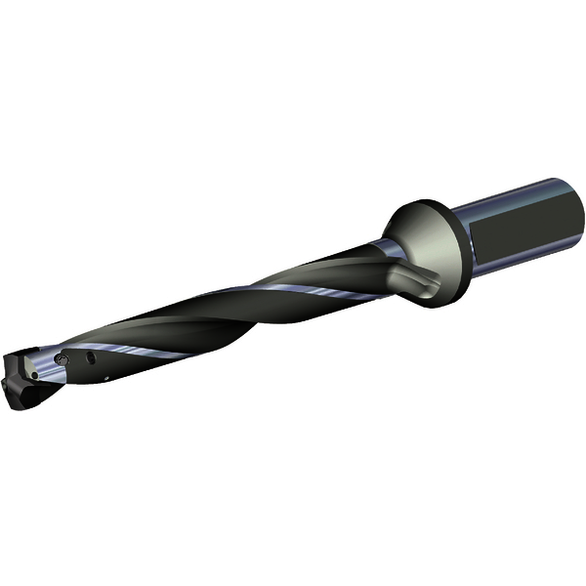

Image for WIDIA 6572261
  • Shank Diameter - Decimal: 1.25 in
  • Shank Diameter - Metric: 31.75 mm
  • Overall Length: 14.1339 in
  • Flute Length x Diameter Ratio: 8
  • Insert Seat Size: O
  • Maximum Drill Depth: 9.7638 in
  • Maximum Drill Diameter - Decimal: 1.2204 in
  • Maximum Drill Diameter - Metric: 30.999 mm
  • Minimum Drill Diameter - Decimal: 1.1812 in
  • Minimum Drill Diameter - Metric: 30 mm
  • Number of Flutes: 2
  • Shank Length: 2.3622 in
  • Flanged shank with a single flat for maximum rigidity
  • Internal coolant channels
  • Front clamping. No needs to disassemble the body from the tool holder to change the insert
  • Highly engineered pocket seat design for high stability even in critical operations
