Mitsubishi

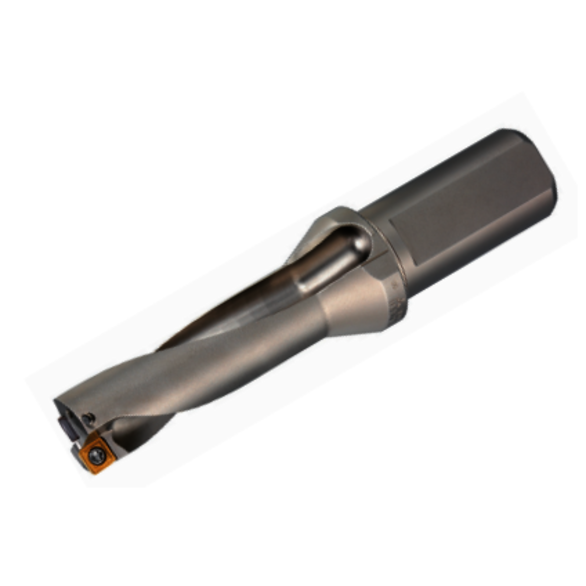

Mitsubishi 833125 152.00 mm Max Drill Depth, 4, 1.4961 in Dia, Indexable Insert Drill
MITMAT 833125
$1,048.57
/ EA
Out of Stock
- Maximum Drill Depth: 152.00 mm
- Shank Diameter: 10 mm
- Shank Diameter - Decimal: 1.5748 in, 1.575 in
- Shank Diameter - Metric: 40 mm, 40.00 mm
- Body Length: 159.00 mm
- Cutting Depth: 35 mm
- Cutting Diameter: 10 mm
- Cutting Edge Material: Solid Carbide
- Flute Length: 35 mm
- Flute Type: Straight V
- Insert Compatibility: SOGX115506-UN
- Material: Solid Carbide
- Overall Length: 88 mm
- Series: 56-450
- Shank Length: 65.00 mm
- Shank Type: Cylindrical
- Type: Double Edge
- Finish: Uncoated
- Ideal combination of outer CVD insert and inner PVD insert
- High rigidity body that enabled L/D=6 deep hole machining.
Standard/Approvals:MVX3800X4F40
Mitsubishi 833125 152.00 mm Max Drill Depth | 4 | 1.4961 in Dia | MVX | 1 | Indexable Insert Drill
