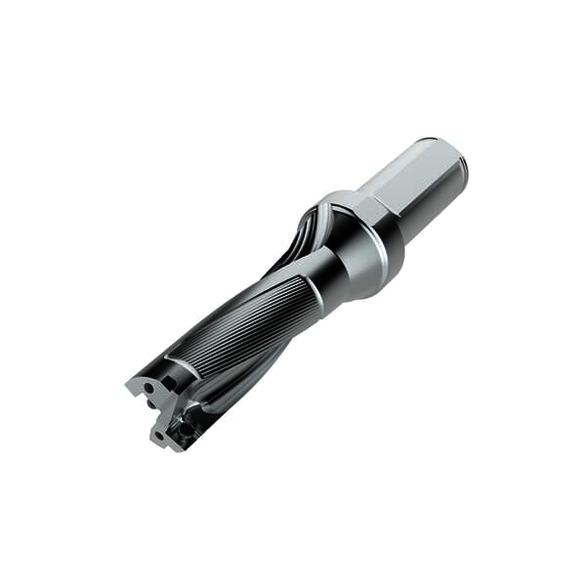

Seco 03080537 Perfomax™ SD523 Indexable Insert Drill, 1.344 in Drill, 1.969 in Modular Connection, 1-1/2 in Dia Shank, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 7.836 in OAL, 4.03 in D Max Drill
- Drill Diameter - Decimal: 1.3440 in
- Maximum Drill Depth: 4.03 in
- Shank Diameter: 1 1/2 in
- Shank Diameter - Fractional: 1 1/2 in
- Modular Connection Size: 1.969
- Cutting Direction: Right Hand
- Coolant Through: Yes
- Diameter: 1.344 in
- Flute Length: 4.2270 in
- Insert Compatibility: SPGX0903 Center, SCGX09T308 Peripheral
- Insert Compatibility (Outside or Peripheral): SPGX11T3 Center, SCGX09T308 Peripheral
- Maximum Drill Diameter - Decimal: 1.3440 in
- Number of Drill Inserts: 2
- Overall Length: 7.836 in
- Overall Length/Projection: 7.8360 in
- Part Number: 03080537
- Series: Perfomax SD523
- Shank Length: 2-5/8 in
- Shank Length - Fractional: 2-5/8 in
- Shank Type: ISO 9766
- Through Coolant: Non-Through Coolant
- Toolholder Material: Solid Carbide
Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
- Effective chip control for long chipping ductile materials
- Fast and efficient chip evacuation
- Higher cutting parameters for increased drilling output
- Longer tool life gives reduced tool cost
- Exceptional process predictability and reliability
- Better hole tolerance
For cutting and machining
Seco Indexable Insert Drill | Series: Perfomax SD523 | 1.344 in Drill | 1-1/2 in Shank Diameter | 2-5/8 in Shank Length | ISO 9766 Shank | 1.969 in Modular Connection Size | SPGX/SCGX Insert | 4.03 in Maximum Drill Depth | 7.836 in Overall Length | 1.344 in Diameter | 3XD Drill Depth by Diameter Ratio | 2 Drill Inserts | Insert Compatibility: SPGX11T3 Center | SCGX09T308 Peripheral | 4.227 in Flute Length | Yes Through Coolant
