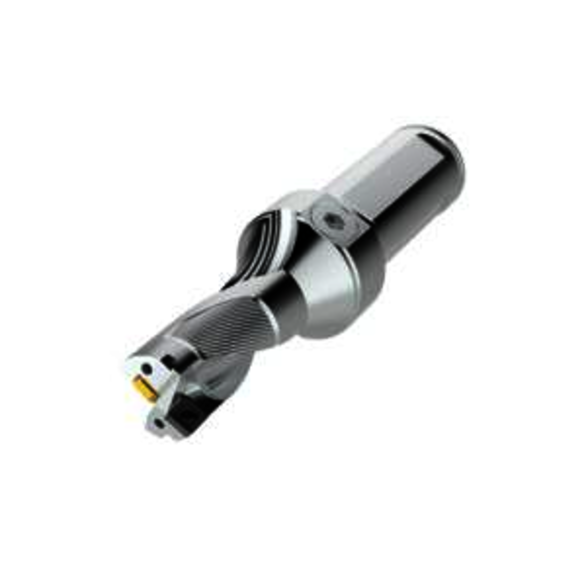

Seco 03080718 Perfomax™ SD522 Indexable Insert Drill, 7/8 in Drill, 1.378 in Modular Connection, 1 in Dia Shank, 2XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 5.181 in OAL, 1-3/4 in D Max Drill
- Drill Style: SD522
- Drill Diameter - Decimal: 0.8750 in
- Drill Diameter - Fractional: 7/8 in
- Drill Diameter - Metric: 22.230 mm
- Maximum Drill Depth: 1-3/4 in
- Shank Diameter: 1 in
- Shank Diameter - Decimal: 1 in
- Shank Diameter - Metric: 25.400 mm
- Modular Connection Size: 1.378
- Cutting Direction: Right Hand
- Drill Depth by Diameter Ratio: 2XD
- Body Length: 74.500 mm
- Collar Diameter: 35.000 mm
- Coolant Through: Yes
- Flute Length: 49.500 mm
- Insert Compatibility: SPGX0703..
- Insert Compatibility (Outside or Peripheral): SCGX 060204
- Maximum Drill Depth - Fractional: 1-3/4 in
- Maximum Drill Diameter - Fractional: 7/8 in
- Maximum Drill Diameter - Metric: 22.230 mm
- Number of Drill Inserts: 2
- Overall Length: 5.181 in
- Overall Length/Projection: 131.600 mm
- Part Number: 03080718
- Shank Length: 2.2500 in
- Shank Length - Fractional: 2-1/4 in
- Shank Type: ISO 9766
- Through Coolant: Through Coolant
- Toolholder Material: Steel
- Diameter - Fractional: 7/8 in
Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
- Effective chip control for long chipping ductile materials
- Fast and efficient chip evacuation
- Higher cutting parameters for increased drilling output
- Longer tool life gives reduced tool cost
- Exceptional process predictability and reliability
- Better hole tolerance
For cutting and machining
Seco Indexable Insert Drill | Series: Perfomax SD522 | 7/8 in Drill | 1 in Shank Diameter | 2-1/4 in Shank Length | ISO 9766 Shank | 1.378 in Modular Connection Size | SPGX/SCGX Insert | 1-3/4 in Maximum Drill Depth | 5.181 in Overall Length | 7/8 in Diameter | 2XD Drill Depth by Diameter Ratio | 2 Drill Inserts | Insert Compatibility: SPGX0703 Center | SCGX060204 Peripheral | 1.947 in Flute Length | Yes Through Coolant
