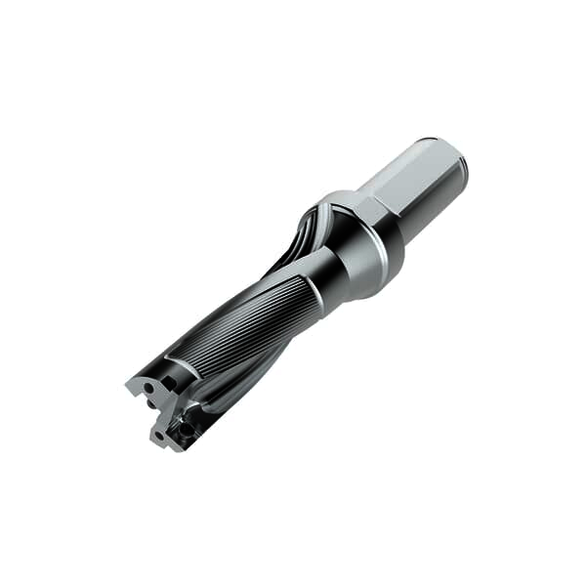

Seco 03080727 Perfomax™ SD522 Indexable Insert Drill, 1.032 in Drill, 1.654 in Modular Connection, 1-1/4 in Dia Shank, 2XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 5.616 in OAL, 2.06 in D Max Drill
- Drill Diameter - Decimal: 1.0320 in
- Maximum Drill Depth: 2.06 in
- Shank Diameter: 1 1/4 in
- Shank Diameter - Fractional: 1 1/4 in
- Modular Connection Size: 1.654
- Cutting Direction: Right Hand
- Drill Depth by Diameter Ratio: 2XD
- Coolant Through: Yes
- Diameter: 1.032 in
- Flute Length: 2.2570 in
- Insert Compatibility: SPGX0903 Center, SCGX09T308 Peripheral
- Maximum Drill Diameter - Decimal: 1.0320 in
- Number of Drill Inserts: 2
- Overall Length: 5.616 in
- Overall Length/Projection: 5.6160 in
- Part Number: 03080727
- Series: Perfomax SD523
- Shank Length: 2-3/8 in
- Shank Length - Fractional: 2-3/8 in
- Shank Type: ISO 9766
- Through Coolant: Non-Through Coolant
- Toolholder Material: Solid Carbide
Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
- Effective chip control for long chipping ductile materials
- Fast and efficient chip evacuation
- Higher cutting parameters for increased drilling output
- Longer tool life gives reduced tool cost
- Exceptional process predictability and reliability
- Better hole tolerance
For cutting and machining
Seco Indexable Insert Drill | Series: Perfomax SD522 | 1.032 in Drill | 1-1/4 in Shank Diameter | 2-3/8 in Shank Length | ISO 9766 Shank | 1.654 in Modular Connection Size | SPGX/SCGX Insert | 2.06 in Maximum Drill Depth | 5.616 in Overall Length | 1.032 in Diameter | 2XD Drill Depth by Diameter Ratio | 2 Drill Inserts | Insert Compatibility: SPGX0903 Center | SCGX070308 Peripheral | 2.257 in Flute Length | Yes Through Coolant
