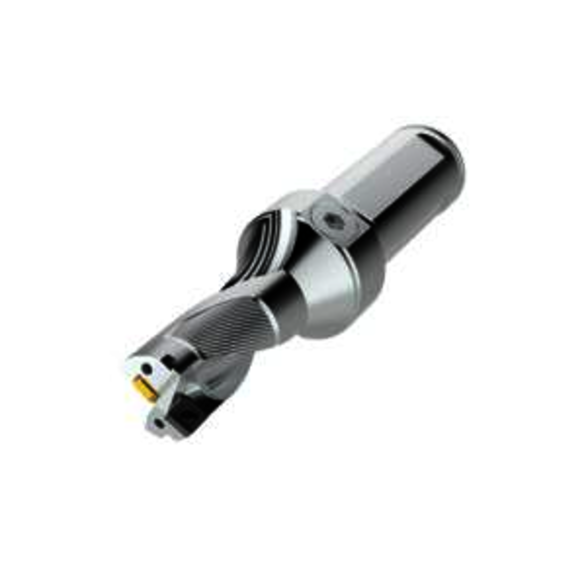

Seco 03080929 Perfomax™ SD523 Indexable Insert Drill, 19 mm Drill, C4 Modular Connection, 20 mm Dia Shank, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 120 mm OAL, 57 mm D Max Drill

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

• Effective chip control for long chipping ductile materials
• Fast and efficient chip evacuation
• Higher cutting parameters for increased drilling output
• Longer tool life gives reduced tool cost
• Exceptional process predictability and reliability
• Better hole tolerance

For cutting and machining

Seco Indexable Insert Drill | Series: Perfomax SD523 | 19 mm Drill | 20 mm Shank Diameter | 50 mm Shank Length | Seco-Capto Shank | C4 Modular Connection Size | SPGX/SCGX Insert | 57 mm Maximum Drill Depth | 120 mm Overall Length | 19 mm Diameter | 3XD Drill Depth by Diameter Ratio | 2 Drill Inserts | Insert Compatibility: SPGX0602 Center | SCGX050204 Peripheral | 62 mm Flute Length | Yes Through Coolant
