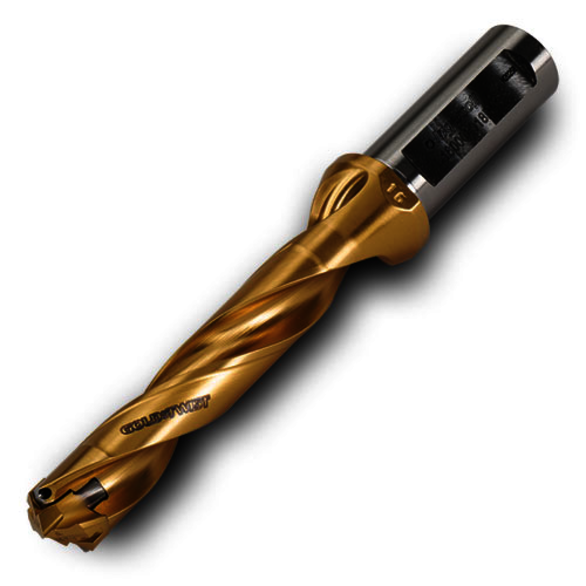

Ingersoll Cutting Tools 3212834 0.8661 (22.0 mm) to, 0.9016 (22.9 mm), 1.5XD, Replaceable-Tip Drill
INGCUT 3212834
$573.71
/ EA
Out of Stock
- Shank Diameter - Metric: 25.00 mm
- Insert Style: TD
- Coolant Through: Yes
- Depth Ratio: 1.5xD
- Diameter - Decimal: 0.86614 in
- Diameter - Metric: 22 mm
- Diameter Range: 22-22.9 mm
- Extension Length: 67.8 mm
- Flute Length: 33.00 mm
- Overall Length: 123.8 mm
- Series: TD 1.5:1 Bodies Metric Universal Shank
- Shank Length: 56.0 mm
- Shank Type: Universal
- Replaceable Tipped Drill Bodies L:D Ratio - 1.5:1
- Coolant Through
- Holds +.002/-.000 on Hole Diameter
Applications:
Ingersoll Cutting Tools 3212834 0.8661 (22.0 mm) to | 0.9016 (22.9 mm) | 1.5XD | 25.00 mm | Replaceable-Tip Drill
