Ingersoll Cutting Tools

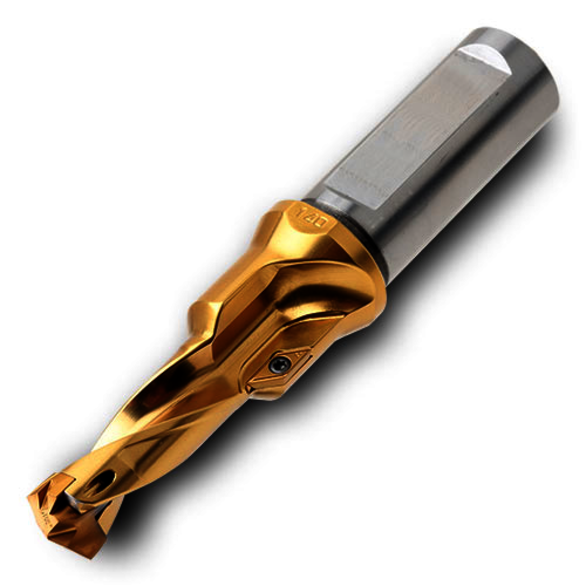

INGCUT 6102434 0.472 Dia 3/8 UNC Indexable Drill

INGCUT 6102434
$401.72 / EA
Out of Stock
INGCUT 6102434 0.472 Dia 3/8 UNC Indexable Drill
  • Maximum Drill Depth: 1.000 in
  • Shank Diameter - Decimal: 0.500 in
  • Insert Style: TC
  • Chamfer Diameter - Decimal: 0.59 in
  • Chamfer Diameter - Metric: 14.98 mm
  • Coolant Through: Yes
  • Diameter - Decimal: 0.472 in
  • Diameter - Metric: 11.98 mm
  • Diameter Range: 0.2953-0.311 in
  • Extension Length: 1.97 in
  • Flute Length: 1.18 in
  • Overall Length: 3.74 in
  • Point Size: 0.311 in
  • Series: TC Tap Drill/Chamfer Bodies Inch Shank
  • Shank Length: 1.77 in
  • Shank Type: Universal
  • Thread Form Type: UNC
  • Thread Size: 3/8 in
  • Type: Tap Drill;Chamfer Combo
  • Drill/Chamfer Replaceable Tipped Bodies Combines Drilling & Chamfering in One Operation
  • Coolant Through
  • Holds +.002/.000 on Hole Diameter

Applications:

  • Chamfering
  • Coolant-Thru
  • Drilling

    • Ingersoll Cutting Tools 6102434 0.2953 to | 0.3110 | 1.000 in | 0.500 | Replaceable-Tip Drill
