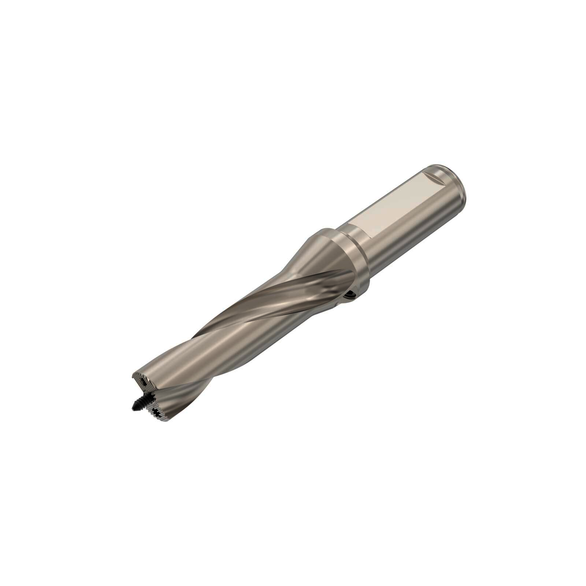

Seco 02445832 Crownloc® Right Hand Exchangeable Tip Drill, 17 to 17.99 mm Drill, SD100 Insert, 5.539 in OAL, 3XD Drill Depth by Dia Ratio, 3/4 in Dia Shank, SD103 Toolholder
SECO 02445832
$406.08
/ EA
Out of Stock
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Coolant Through: Yes
- Diameter - Decimal: 0.6496 in
- Diameter - Metric: 16.5 mm
- Flute Length: 67.7 mm
- Maximum Drill Depth - Metric: 60 mm
- Overall Length: 5.539 in
- Point Angle: 140 deg
- Series: SD103
- Shank Length: 1.969 in
- Shank Type: ISO 9766/Weldon
- Toolholder Type: SD103
SD103-17.00/17.99-60-0750R7 COOLANT THRU
