SUMITOMO

Sumitomo Electric Carbide 5L00066 1.2130 in to 1.2598 in, 5XD, Replaceable-Tip Drill

SUMI 5L00066
$761.58 / EA
Out of Stock

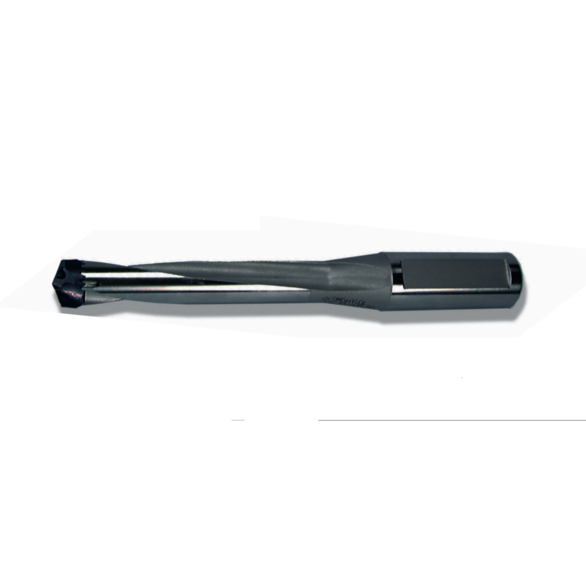

Image for SUMI 5L00066
  • Maximum Drill Depth: 163.00 mm
  • Shank Diameter - Decimal: 1.2590 in
  • Shank Diameter - Metric: 32.00 mm
  • Insert Style: SMDT
  • Flute Length: 200.00 mm
  • Overall Length: 260.00 mm
  • Series: SMD
  • Shank Length: 2.3620 in
  • Shank Type: Whistle Notch
  • Available in metric and inch diameters ranging from 0.4688” - 1.6535” (42.0mm)
  • Available in 3X, 5X, 8X & now 1.5X & 12X diameter ha bodies that can accept multiple diameters
  • Three styles of drill tips to maximize performance
  • SMDT-MTL - standard edge preparation for applications
  • SMD carbide tips have Sumitomo’s patented wear resistant DEXTM coatings
  • Ground serrations on back of drill tip allow for precise assembly and superior repeatability
  • Drill tips are capable of being reground
  • Coolant through drill bodies

Standard/Approvals:SMDH320L

Sumitomo Electric Carbide 5L00066 1.2130 in to | 1.2598 in | 5XD | 163.00 mm | 1.2590 in | Replaceable-Tip Drill
